Exterior Doors Export in China | Technical Specs & Factory Pricing

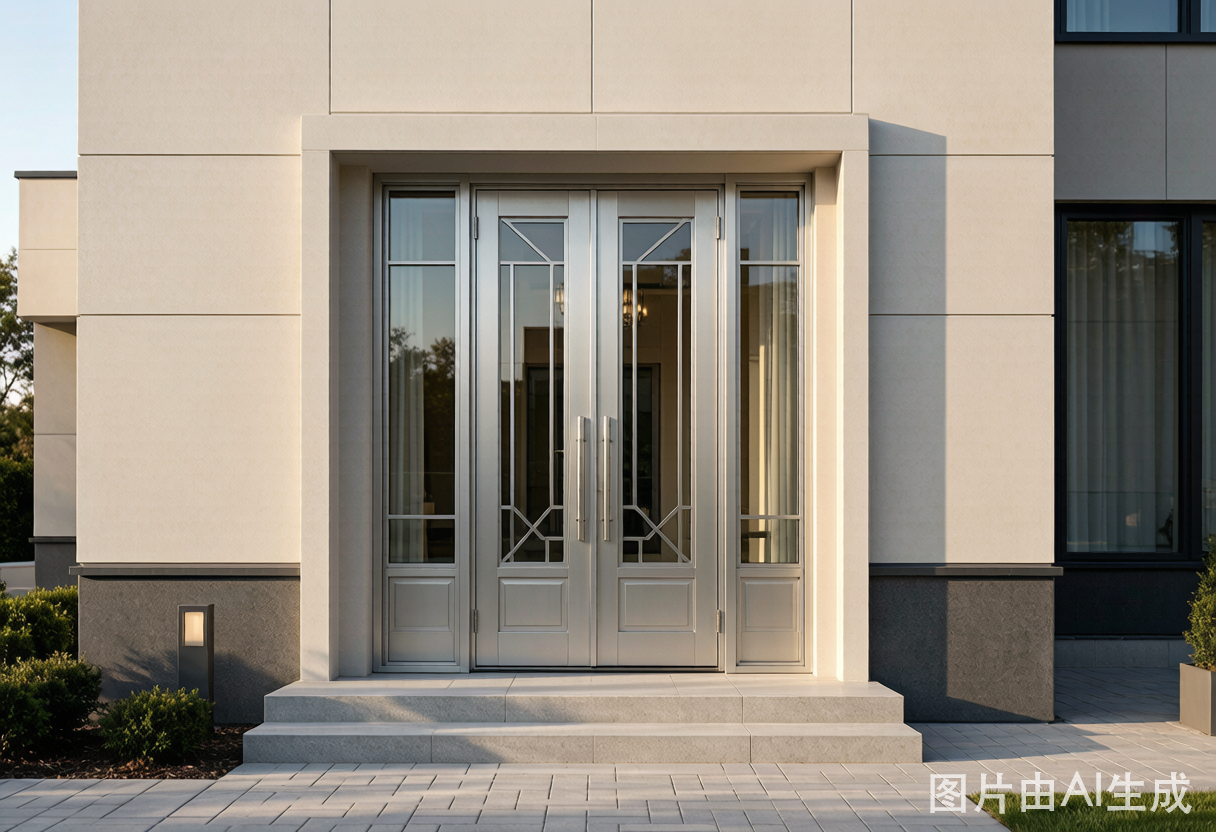

Modern aluminum exterior entrance doors installed on luxury residential building in China - double door with thermal break frame and glass panels

Exterior Doors for Houses: Pricing & Configuration Options

China exports approximately 120 million door units annually, with exterior doors accounting for 28% of total door exports by value. Factory-direct pricing for aluminum exterior doors ranges from $280 to $850 per unit, depending on frame configuration, glass type, and hardware specifications. The table below breaks down pricing by configuration.

Configuration	Frame Material	Glass Type	Price/Unit (FOB)	MOQ
Single Door (900×2100mm)	6063-T5 Aluminum, 2.0mm	5mm+12A+5mm Tempered	$280–$360	10
Single Door + Sidelight	6063-T5 Aluminum, 2.0mm	5mm+12A+5mm Low-E	$420–$520	10
Double Door (1800×2100mm)	6063-T5 Aluminum, 2.2mm	6mm+16A+6mm Tempered	$580–$720	5
Double Door + Sidelights + Transom	6063-T6 Aluminum, 2.2mm	6mm+16A+6mm Triple-Silver Low-E	$720–$850	5

Frame thickness options range from 1.8mm to 2.2mm. The 2.0mm wall thickness meets AAMA 101 performance class for commercial applications. Powder coating adds $15–$25 per square meter surface area. Wood-grain transfer finish adds $35–$50 per door.

Door Core Construction Types

Three core types are available for exterior doors for houses applications:

Polyurethane (PU) foam-filled: Density 38–42 kg/m³, U-value 0.35–0.45 W/m²K. R-value of R-6 to R-8. Suitable for IECC Climate Zones 1–5.
EPS foam-filled: Density 16–20 kg/m³, U-value 0.45–0.55 W/m²K. Cost approximately 18% less than PU.
Honeycomb aluminum core: Density 28–32 kg/m³, U-value 0.50–0.60 W/m²K. 40% lighter than foam-filled panels, preferred for pivot door applications.

Hardware Configuration Tiers

Tier	Lock System	Hinges	Handle Material	Add-on Cost
Standard	Single-point, 3 keys	3x SS304 butt hinges	Aluminum alloy	Included
Upgraded	3-point locking, 5 keys	3x SS316 adjustable hinges	SS304 brushed finish	+$35
Premium	5-point multi-lock, ABUS cylinder	3D adjustable SS316, 160kg load	SS316 PVD coated	+$75

Exterior Pivot Door Modern: Manufacturing Process & Material Specifications

The exterior pivot door modern design uses a floor-mounted or top-mounted pivot hinge system that shifts the door’s rotation axis away from the frame edge. This allows for panel widths up to 1400mm and heights up to 3200mm using stable aluminum frame construction.

Aluminum Alloy Specifications

Parameter	Standard Configuration	Heavy-Duty Configuration
Alloy Grade	6063-T5 (GB/T 5237)	6063-T6 (GB/T 5237)
Tensile Strength	≥160 MPa	≥205 MPa
Yield Strength	≥110 MPa	≥180 MPa
Elongation	≥8%	≥10%
Wall Thickness	2.0mm ±0.05mm	2.2mm ±0.05mm
Max Panel Width	1200mm	1400mm
Max Panel Height	2800mm	3200mm
Max Weight Capacity	200 kg	300 kg

Surface Treatment Process

All frames undergo a 7-stage pre-treatment line before powder coating:

Alkaline degreasing (pH 11–12, 55°C, 3 min)
Water rinse (ambient, 1 min)
Acid etching (pH 2–3, 30°C, 2 min)
Water rinse (ambient, 1 min)
Chromium-free conversion coating (Zr/Ti based, 30°C, 1 min)
Water rinse (ambient, 1 min)
Forced air drying (80°C, 5 min)

Powder coating uses polyester-based powder (AkzoNobel or Tiger Drylac) applied at 60–80 kV electrostatic voltage, cured at 200°C for 10 minutes. Coating thickness: 60–80 μm. Salt spray resistance: ≥1,000 hours (ASTM B117). UV resistance: ΔE ≤ 5 after 3,000 hours QUV-B (ASTM G154).

Thermal Break Technology

Polyamide 66 (PA66) thermal break strips with 25% glass fiber reinforcement are inserted between inner and outer aluminum profiles. Strip width options:

Strip Width	Frame U-Value	Application
14.8mm	2.8–3.2 W/m²K	Mild climates (Zone 1–3)
20mm	2.2–2.6 W/m²K	Temperate climates (Zone 4–5)
24mm	1.8–2.2 W/m²K	Cold climates (Zone 6–7)
34mm (multi-chamber)	1.4–1.8 W/m²K	Extreme cold / Passive House

Aluminum Entrance Door: Technical Performance Data

The aluminum entrance door category covers single and double-leaf configurations tested to international performance standards. All data below is from third-party laboratory testing per AAMA/WDMA/CSA 101/I.S.2/A440.

Performance Test Results

Test Parameter	Standard	Result	Rating
Air Infiltration	ASTM E283 (75 Pa)	≤0.1 L/s/m²	A3 (highest)
Water Penetration	ASTM E547 (300 Pa)	No leakage at 12% of design pressure	Class B4
Wind Load Resistance	ASTM E330	±3,600 Pa (DP 55)	Performance Class AW
Forced Entry Resistance	ASTM F588 / AAMA 1304	Passed 5-minute static load test	Grade 40
Thermal Transmittance	NFRC 100	U=1.8 W/m²K (with 24mm PA66)	Energy Star Zone C
Condensation Resistance	AAMA 1503	CRF 62	–
Cycling Test	AAMA 910	500,000 cycles, no degradation	Class AW

Glass Configuration & Thermal Performance

Glass Package	Makeup	U-Value	SHGC	VT	STC
Standard Double	5mm Clear + 12A + 5mm Clear	2.7	0.70	0.78	31
Low-E Double	5mm Low-E(#2) + 16A + 5mm Clear	1.8	0.42	0.70	32
Triple Glazed	5mm Low-E(#2) + 12A + 5mm Clear + 12A + 5mm Low-E(#5)	1.1	0.35	0.62	36
Laminated Triple	6mm Laminated Low-E + 16Ar + 5mm Clear + 16Ar + 6mm Laminated	0.9	0.32	0.58	40

Argon gas fill (90% minimum concentration) reduces center-of-glass U-value by approximately 16% compared to air-filled units. Warm-edge spacers (Super Spacer or Swisspacer) add approximately 0.02–0.04 W/m²K improvement at the edge zone.

Exterior Front Entry Doors: Certifications & Quality Standards

Chinese-manufactured exterior front entry doors for export markets carry the following certifications, verified at each production batch:

Required Certifications by Market

Market	Required Certifications	Testing Body	Recertification Cycle
North America	NFRC 100/200, AAMA/WDMA/CSA 101, Energy Star	NFRC-accredited lab	Every 4 years
European Union	EN 14351-1, CE Marking (DoP)	Notified Body (NB)	Every 5 years
Australia/NZ	AS 2047, AS 4284	NATA-accredited lab	Every 5 years
Middle East	ESMA (UAE), SASO (Saudi Arabia)	Accredited third-party	Annual factory audit
Miami-Dade County	NOA (Notice of Acceptance), TAS 201/202/203	Miami-Dade approved lab	Product approval valid until spec change

In-House Quality Testing Protocol

Each production batch undergoes 100% inspection (not statistical sampling) on these checkpoints:

Frame dimensional tolerance: ±0.5mm on width/height, ±0.3mm on diagonal
Weld seam integrity: visual inspection + 3-point ultrasonic thickness gauge check
Gasket compression: 3.5mm ±0.5mm when door closed (measured with feeler gauge at 4 corners)
Hardware torque test: hinge screws at 8 N·m, lock body screws at 6 N·m
Glass seal integrity: butyl primary seal ≥3mm depth, silicone secondary seal ≥5mm
Opening/closing force: ≤50 N for single door, ≤80 N for double door
Drainage test: 2L water poured at sill, must drain within 30 seconds with zero interior leakage

ISO 9001:2015 Manufacturing System

The factory operates under ISO 9001:2015 certified quality management. Key process control documents include PFMEA (Process Failure Mode Effects Analysis) for each product line, Control Plans for 12 critical-to-quality characteristics, and SPC (Statistical Process Control) charts maintained for frame cutting accuracy and welding parameters.

Installation Standards & Quality Control Protocols

Factory-provided installation guidelines align with ASTM E2112 for exterior door installation. Water management follows a drained and back-ventilated rainscreen principle.

Rough Opening Preparation

Parameter	Requirement
RO Width	Door width + 38mm (shim gap)
RO Height	Door height + 25mm
RO Squareness	Diagonal difference ≤ 3mm
Sill Flatness	≤ 1.5mm deviation across width
Sill Slope	5–8° outward

Waterproofing Layer Sequence

Sill pan flashing: self-adhered membrane (Grace Vycor Plus or equivalent), 150mm up each jamb leg
Jamb flashing: 100mm overlap over sill pan, extended 25mm beyond exterior sheathing
Head flashing: rigid metal drip cap with end dams, 5° minimum slope
Exterior sealant: low-modulus neutral-cure silicone (Dow 791 or equivalent), 10mm × 10mm joint profile
Interior air seal: closed-cell backer rod + low-expansion PU foam, trimmed flush

Installation Tolerance Checklist

Plumb deviation: ≤ 1.5mm over 2100mm height
Level deviation: ≤ 1.5mm over 1200mm width
Reveal gap consistency: 3.5mm ±0.5mm on all 4 sides
Hardware latching: bolt must fully engage strike plate with ≤1mm free play
Sill drainage slots: minimum 2 slots of 6mm × 20mm, unobstructed

Ordering, Logistics & MOQ Data

Export orders for exterior doors from China follow documented commercial terms:

Commercial Terms Summary

Parameter	Standard Term
MOQ (Mixed Container)	10 units (single door) or 5 units (double door)
MOQ (Full Container)	80–120 units per 20GP, 160–220 units per 40HQ
Production Lead Time	14–21 days (standard), 21–28 days (custom sizing/color)
Sea Freight Transit	North America West Coast: 14–18 days, East Coast: 26–32 days, Europe: 25–30 days, Middle East: 15–20 days
Payment Terms	T/T 30% deposit, 70% before shipment; L/C at sight for orders >$30,000
Warranty	10 years on aluminum frame, 5 years on glass unit, 2 years on hardware

Packaging Specifications

Each door unit: wrapped in PE foam (3mm), then corrugated cardboard (5-layer BC flute)
Corner protection: 4x EPS corner blocks (50×50×200mm)
Pallet: fumigated ISPM-15 heat-treated wood pallet (1100×1100mm)
Container loading: doors upright on A-frame steel rack, secured with polyester strapping (breaking strength 450 kg)
Container interior: desiccant bags (500g × 8 per 20GP), humidity indicator cards

Factory Quality Documentation per Shipment

Material test certificates (mill certs for aluminum extrusion, EN 10204 Type 3.1)
Glass substrate certificates (ASTM C1036 / EN 572)
Coating adhesion test report (cross-hatch test per ISO 2409, rating 0 or 1)
Pre-shipment inspection report (AQL 1.0, Level II per ISO 2859-1)
Certificate of Origin (Form E for ASEAN, Form A for EU GSP)
Packing list with individual unit serial numbers for traceability

Product links: Browse the full range of exterior doors including aluminum entrance doors and pivot configurations. See all door categories for sliding, folding, and garage doors. Explore window collections for matching window systems.
