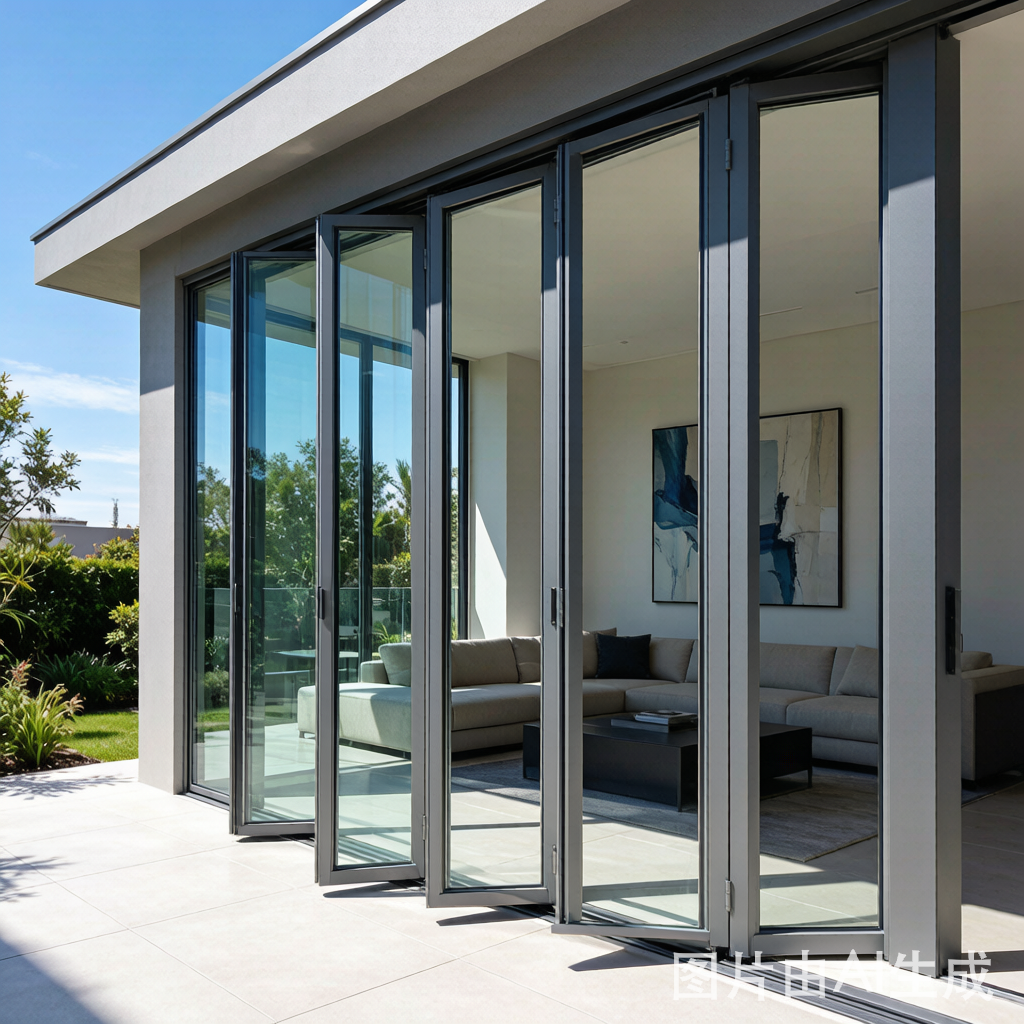

Accordion doors, also known as aluminum folding doors or bi-fold doors, are space-efficient opening systems widely used in residential, commercial, and hospitality projects. As a specialized accordion door manufacturer in China, ROGENILAN produces custom aluminum folding door systems with thermal break technology, meeting CE, NFRC, and AAMA certification standards. This article presents technical specifications, production data, pricing, and installation requirements for aluminum folding door projects.
Accordion Door Specifications and Technical Data
Aluminum Alloy Profile and Wall Thickness
ROGENILAN accordion door frames use 6063-T5 aluminum alloy with a minimum wall thickness of 1.6mm for main profiles and 1.4mm for auxiliary profiles. The 6063-T5 alloy provides a tensile strength of 160 MPa and yield strength of 110 MPa, suitable for spans up to 6 meters in folding configurations. The extrusion tolerance complies with GB/T 5237.1-2017 Class A standards.
Standard profile dimensions for accordion door systems:
Thermal Performance and U-Values
Thermal break accordion door systems use PA66 GF25 polyamide insulation strips with a width of 24mm. The thermal break assembly reduces heat transfer by separating the interior and exterior aluminum profiles. Tested U-values range from 1.4 to 2.1 W/(m²·K) depending on glass configuration:
Aluminum Folding Door Production Process
Extrusion and Surface Treatment
Raw aluminum billets are heated to 480°C and extruded through dies at 300-350 MPa pressure. After extrusion, profiles undergo aging treatment at 185°C for 6 hours to achieve T5 temper. Surface treatment options include:
- Anodized: 10-20 micron thickness, AA15 grade, color options: natural silver, champagne, bronze, black
- Electrophoretic coating: 12-18 micron film thickness, matte or gloss finish
- PVDF fluorocarbon coating: 35-40 micron total thickness, 20-year color retention warranty
- Powder coating: 60-80 micron thickness, RAL color matching available
The powder coating process uses epoxy-polyester hybrid powder cured at 180-200°C for 15 minutes. Salt spray testing exceeds 1000 hours per ASTM B117.
Thermal Break Assembly
PA66 GF25 insulation strips are inserted into profile grooves and crimped using a rolling machine with 3-5 tons pressure. The strip width determines the thermal break performance: 14.8mm for standard applications, 24mm for cold climates, and 34mm for passive house projects. The combined profile after thermal break assembly must pass a shear strength test of ≥24 N/mm.
Folding Door Price List by Configuration
Price Table by Size and Material
The following prices are FOB Foshan, China, based on a 3-panel accordion door configuration (width 2400mm × height 2200mm) with standard hardware:
Price per square meter ranges from $55 to $170 depending on specification. Custom sizes are priced at base rate plus 15% for non-standard dimensions.
MOQ and Delivery Timeline
Minimum order quantities and delivery schedules:
- MOQ: 20 sets (mixed sizes acceptable) or 50 square meters
- Sample order: 1 set available at prototype pricing (+40% surcharge)
- Production lead time: 25-35 days after deposit and drawing confirmation
- Peak season (March-June): add 10-15 days
- Shipping: 15-25 days to US West Coast, 30-40 days to Europe
Payment terms: 30% T/T deposit, 70% balance before shipment. L/C at sight accepted for orders over $50,000. D/P terms available for established clients after 3 orders.
Accordion Doors Folding Hardware and Glass Options
Hinge and Track Systems
Accordion door hardware determines operational lifespan and load capacity. ROGENILAN uses:
- Track system: Top-hung heavy-duty aluminum track with 304 stainless steel rollers, rated for 150kg per panel
- Hinges: 316 stainless steel pivot hinges, tested to 50,000 open/close cycles
- Bottom guide: Nylon-reinforced bottom guide block with anti-derailment design
- Locking: Multi-point locking system with 5 locking points, hook-style bolts
- Handle: 304 stainless steel folding handle, flush-mount design
Track specifications for different panel counts:
Glass Configuration and Safety Standards
Glass options for accordion door folding systems:
- Tempered glass: Complies with EN 12150-1, fragmentation test within 50mm radius
- Laminated glass: 6.38mm minimum (3+0.38PVB+3), meets EN 14449
- LOW-E coating: Solar control with g-value 0.35-0.55, SHGC 0.30-0.45
- Argon filling: Initial concentration ≥90%, annual leakage rate <1%
All glass is certified to CCC (China Compulsory Certification) and carries CE marking for European exports.
Folding Door Installation and Waterproofing
Installation Steps and Clearances
Proper installation ensures accordion door performance and longevity. Required clearances:
- Head clearance: Minimum 80mm above structural opening for track installation
- Side clearance: 15-20mm per side for frame adjustment
- Sill depth: 30mm minimum for drainage channel
- Floor level tolerance: ±2mm over 2 meters
Installation sequence:
- Install top track with laser level alignment (±1.5mm/m)
- Fix side frames with expansion anchors at 400mm spacing
- Hang panels starting from fixed side, install rollers into track
- Adjust panel alignment using height-adjustable rollers
- Install interlock seals and magnetic catches
- Test opening/closing force: should not exceed 50N
- Apply silicone sealant at frame-wall interface
Waterproofing and Sealing
Waterproofing performance for external accordion door installations:
- Water tightness: Class 5A per EN 12208 (600Pa pressure)
- Air permeability: Class 3 per EN 12207 (3.0 m³/m·h at 100Pa)
- EPDM gasket: Continuous co-extruded rubber seal, Shore A hardness 65±5
- Drainage: Dual-channel sill with weep holes at 300mm spacing
- Threshold: Low-profile 15mm threshold option for barrier-free access
Silicone sealant specification: neutral cure, UV-resistant, movement capability ±25%. Recommended brands: Dow Corning 791 or equivalent.
Certification and Quality Standards
International Certifications
ROGENILAN aluminum folding door products carry the following certifications:
- CE marking: EN 14351-1 for windows and doors (system 3)
- NFRC: Certified U-factor and SHGC ratings for US markets
- AAMA: Performance ratings per AAMA/WDMA/CSA 101/I.S.2/A440
- ISO 9001: Quality management system certification
- Miami-Dade NOA: Hurricane impact resistance for Florida building code
- Passive House Institute: Component certification for phA+ buildings
Factory Quality Control
Quality checkpoints during production:
- Incoming inspection: Aluminum alloy composition verification by spectrometer
- Extrusion: Profile dimension tolerance ±0.2mm, straightness ≤0.3mm/m
- Surface finish: Coating thickness gauge, adhesion cross-hatch test
- Assembly: 100% functional test of hardware operation
- Final inspection: Frame diagonal tolerance ≤2mm, squareness check
- Packaging: PE film + corner protection + corrugated carton + plywood crate
Defect rate target: <0.5% for critical dimensions, <1% for cosmetic defects.
Customer Case: Residential Project in Australia
Project Data and Configuration
A residential project in Sydney specified accordion door systems for 12 balcony openings:
- Project location: Sydney, Australia
- Total area: 86 square meters of folding doors
- Configuration: 3-fold system, 2400mm W × 2200mm H per opening
- Glass: 6+12A+6 double glazed, tempered, LOW-E coating
- Frame: Thermal break with 24mm PA66 strip, powder coated Colorbond Woodland Grey
- Hardware: 316 stainless steel track, multi-point locking
Cost Comparison and Performance
The client saved $16,770 on material costs compared to local sourcing while achieving comparable thermal performance. Installation was completed in 3 days by a local contractor following ROGENILAN installation guidelines.
Comparison: Aluminum Folding Door vs. Sliding Door
Performance Data
Accordion doors provide maximum opening flexibility for spaces requiring full indoor-outdoor connection. Sliding doors offer lower cost and simpler maintenance for standard applications. For projects requiring 80%+ opening ratio, accordion folding door systems are the optimal choice.
Packing and Shipping Specifications
Export Packaging Standards
ROGENILAN accordion door shipments use multi-layer protection for sea freight transit. Standard packaging sequence: inner PE film wrap → EPE foam corner protectors → corrugated cardboard sleeve → plywood crate with steel banding. Crate dimensions are optimized for 20GP and 40HQ container loading.
Standard packaging components per set:
- Frame sections: Individual PE film wrap, bundled with stretch film, 4 pieces per bundle
- Sash panels: Foam interleaving between glass surfaces, plywood corner guards
- Hardware box: 304 stainless steel components in sealed plastic blister packs
- Track rails: Kraft paper wrapping, bundled in sets of 6 meters
- Documentation: Installation manual, warranty card, CE certificate copy, packing list
Container Loading Data
Loading capacity for accordion door sets (based on 3-fold, 2400×2200mm):
Shipment terms: FOB Foshan Port, Incoterms 2020. Bill of lading issued within 3 days of vessel departure. Container loading supervised by factory QC staff with photo documentation.
Conclusion
Accordion door systems from China offer competitive pricing with certified performance. Key procurement parameters: 6063-T5 aluminum alloy, 1.6mm minimum wall thickness, PA66 GF25 thermal break, and multi-point locking hardware. FOB pricing ranges from $55/m² for standard configurations to $170/m² for premium triple-glazed systems. With 25-35 day production lead times and CE/NFRC/AAMA certifications, Chinese aluminum folding door manufacturers provide viable alternatives to European and local suppliers at 40-60% cost reduction.
For project-specific quotations or technical consultation, contact ROGENILAN with your opening dimensions, wind load requirements, and thermal performance targets.
