Aluminum folding door systems from China deliver space-efficient openings for residential and commercial projects. ROGENILAN manufactures folding door and bifold door units using 6063-T5 aluminum alloy with thermal break polyamide strips. This article presents material specifications, performance data, pricing tables, and procurement terms for buyers sourcing aluminum folding door products from Guangdong factories.
Folding Door Applications and Configuration Options

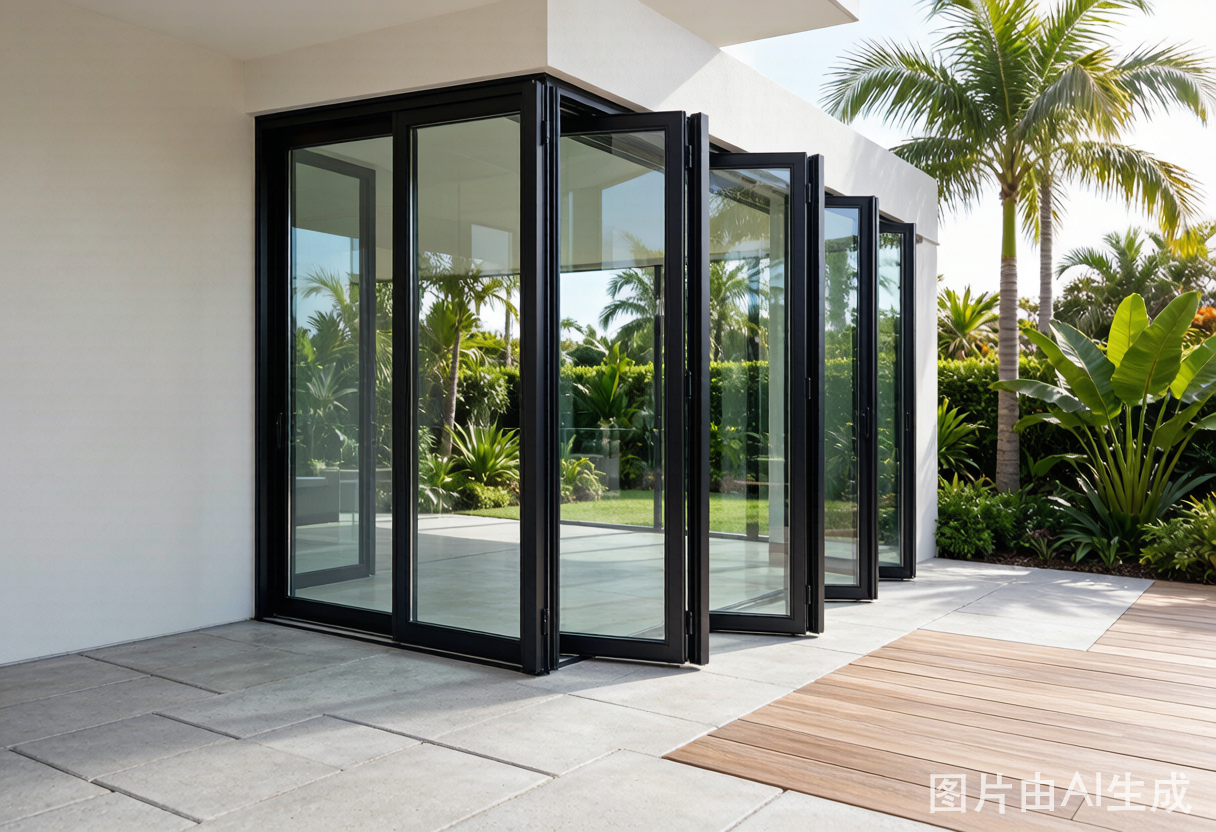

Residential Patio and Terrace Installations
Folding door systems open entire walls, creating 90% clear openings when fully retracted. Standard residential configurations use 3 to 6 panels per opening. Panel widths range from 600mm to 1200mm per leaf. Height options span 2100mm to 3000mm. Track systems support bottom-rolling or top-hung operation. Bottom-rolling configurations handle panels up to 150kg each. Top-hung systems suit openings where floor levels must remain uninterrupted.
Common residential applications include:
- Patio openings: 3m to 6m width, 2.4m height
- Pool enclosures: 4m to 8m width, moisture-resistant hardware
- Terrace transitions: 2.5m to 5m width, low-threshold drainage
Commercial Restaurant and Retail Openings
Commercial folding door installations require higher traffic capacity. Panel weights reach 200kg in commercial-grade systems. Hardware cycles tested to 50,000 open/close operations. Locking systems include multi-point shoot bolts and key-lockable handles. Emergency egress configurations integrate panic hardware.
Commercial specifications differ from residential:
- Panel thickness: 65mm to 80mm (vs. 50mm to 65mm residential)
- Glass weight: up to 50kg/m² (vs. 30kg/m² residential)
- Hardware grade: SS304 stainless steel (vs. zinc alloy residential)
Aluminum Folding Door Material Specifications and Manufacturing Process
Aluminum Alloy Grades and Thermal Break Profiles
ROGENILAN uses 6063-T5 extruded aluminum for folding door frames. This alloy provides:
- Tensile strength: 160 MPa minimum
- Yield strength: 110 MPa minimum
- Wall thickness: 2.0mm to 3.0mm (main profiles)
- Thermal break strip: PA66 GF25 polyamide, width 14.8mm to 24mm
Thermal break profiles separate interior and exterior aluminum sections. This reduces thermal conductivity from 160 W/m·K (solid aluminum) to approximately 0.3 W/m·K through the polyamide bridge. Profile cavity design accommodates dual-layer EPDM gaskets.
Surface Treatment: Powder Coating and Anodizing Parameters
Two surface treatments dominate aluminum folding door production:
Powder Coating:
- Coating thickness: 60μm to 80μm
- Adhesion: Grade 0 (cross-cut test)
- Color options: RAL catalog, wood grain transfer
- Salt spray resistance: 1,000 hours (Grade 1)
Anodizing:
- Film thickness: 10μm to 20μm
- Hardness: 300HV minimum
- Color: silver, champagne, bronze, black
Bifold Door Performance Data and Testing Standards
Thermal Performance: U-Values and Air Infiltration Rates
Bifold door thermal performance depends on glass configuration and frame design. Tested data from NFRC-certified laboratories:
Air infiltration rates (ASTM E283):
- Standard weatherstrip: 1.5 m³/h·m at 100 Pa
- Enhanced dual-gasket: 0.8 m³/h·m at 100 Pa
Structural Load and Wind Resistance Testing
Aluminum folding door systems undergo structural testing per AAMA/WDMA/CSA 101/I.S.2/A440:
- Design pressure: 2,000 Pa to 4,000 Pa (equivalent to 180-250 km/h wind)
- Water penetration resistance: 450 Pa minimum
- Operating force: under 50N per panel
Hurricane-rated configurations achieve Miami-Dade NOA certification. These units use laminated impact glass (interlayer 1.52mm SGP) and reinforced multi-point locking.
Puerta Plegable de Aluminio: Export Configurations for Latin American Markets
Regional Compliance and Local Standards
Puerta plegable de aluminio exports to Latin America follow regional standards. Brazil requires INMETRO certification for thermal performance claims. Mexico accepts ICC-ES reports for structural evaluation. Colombia references NSR-10 for wind load calculations.
Common export specifications for Latin America:
- Frame color: white RAL 9016 (60% of orders), bronze anodized (25%)
- Glass: 6mm clear + 12mm air + 6mm clear (standard)
- Hardware: European-style espagnolette with cylinder lock
- Screen: retractable pleated insect screen (optional)
Packaging and Shipping Specifications
Folding door units ship knocked-down (KD) to reduce volume. Packaging specifications:
- Frame profiles: pearl cotton wrap + corrugated carton
- Glass panels: plywood crate with foam separators
- Hardware: individual poly bags + master carton
- Container load: 180-220 m² per 40HQ (depending on panel count)
Folding Door Aluminum Pricing Tables and Procurement Terms
Price Breakdown by Configuration and Size
Factory pricing for aluminum folding door systems (FOB Shenzhen, USD):
Glass upgrade pricing (per m²):
- Low-E coating: +$8-12
- Argon gas fill: +$3-5
- Laminated safety glass: +$15-22
- Tempered glass: +$5-8
MOQ, Lead Time, and Payment Terms
Procurement terms for ROGENILAN aluminum folding door orders:
- MOQ: 50 m² (mixed sizes accepted)
- Sample lead time: 15-20 days
- Production lead time: 25-35 days (standard), 40-50 days (custom color)
- Payment: 30% T/T deposit, 70% before shipment
- L/C at sight: accepted for orders over $50,000
- Warranty: 10 years frame, 5 years hardware, 1 year glass
Certifications and Quality Control
CE, AAMA, and NFRC Certification Details
ROGENILAN folding door products carry the following certifications:
- CE marking: EN 14351-1 (windows and doors), EN 12207 (air permeability), EN 12208 (water tightness)
- AAMA: 101/I.S.2/A440-17 compliance testing
- NFRC: Certified U-factor and SHGC ratings
- ISO 9001:2015 quality management system
- Miami-Dade NOA: Hurricane impact resistance (selected models)
Factory QC Protocol and 100% Inspection Process
Quality control follows a 100% inspection protocol, not sampling:
- Incoming material: aluminum profile dimension check (±0.2mm tolerance)
- Cutting: angle accuracy ±0.5°, length ±1mm
- Assembly: corner joint gap ≤0.3mm, diagonal difference ≤2mm
- Glass: edge defect inspection, dimension verification
- Final inspection: operation force test, water spray test (15 minutes at 300 Pa)
- Packaging: corner protection, label verification
Factory capacity: 15,000 m² folding door systems per month. 5S management system implemented across 8,000 m² production area.
Installation Technical Data
Subframe Preparation and Waterproofing
Proper installation ensures folding door performance:
- Opening tolerance: width ±5mm, height ±5mm, plumb ±2mm/m
- Subframe material: galvanized steel or aluminum, 1.5mm minimum thickness
- Fixing spacing: 500mm maximum between fasteners
- Sealant: neutral silicone, Shore A 25±5, 6mm minimum width
- Drainage: sill slope 5% minimum, weep holes every 300mm
Panel Alignment and Hardware Adjustment
Post-installation adjustments include:
- Panel vertical alignment: ±2mm top to bottom
- Roller height adjustment: ±5mm range
- Lock striker adjustment: 2mm to 5mm engagement depth
- Gasket compression: 30% to 50% of original thickness
Conclusion
Aluminum folding door systems from China offer measurable value through standardized production, certified testing, and transparent pricing. Buyers evaluating folding door aluminum products should verify thermal break specifications, request NFRC performance data, and confirm factory QC protocols before placing orders. For custom configurations or project-specific engineering, contact ROGENILAN with opening dimensions and performance requirements.
