Architectural Guide to Multi-Fold Glazing Systems: Sourcing Wholesale Aluminum Folding Doors
For modern commercial venues, high-end restaurants, and luxury residential projects, creating a completely seamless path to the outdoors is a powerful design trend. While sliding doors offer large glass walls, they always leave at least one panel overlapping the opening.

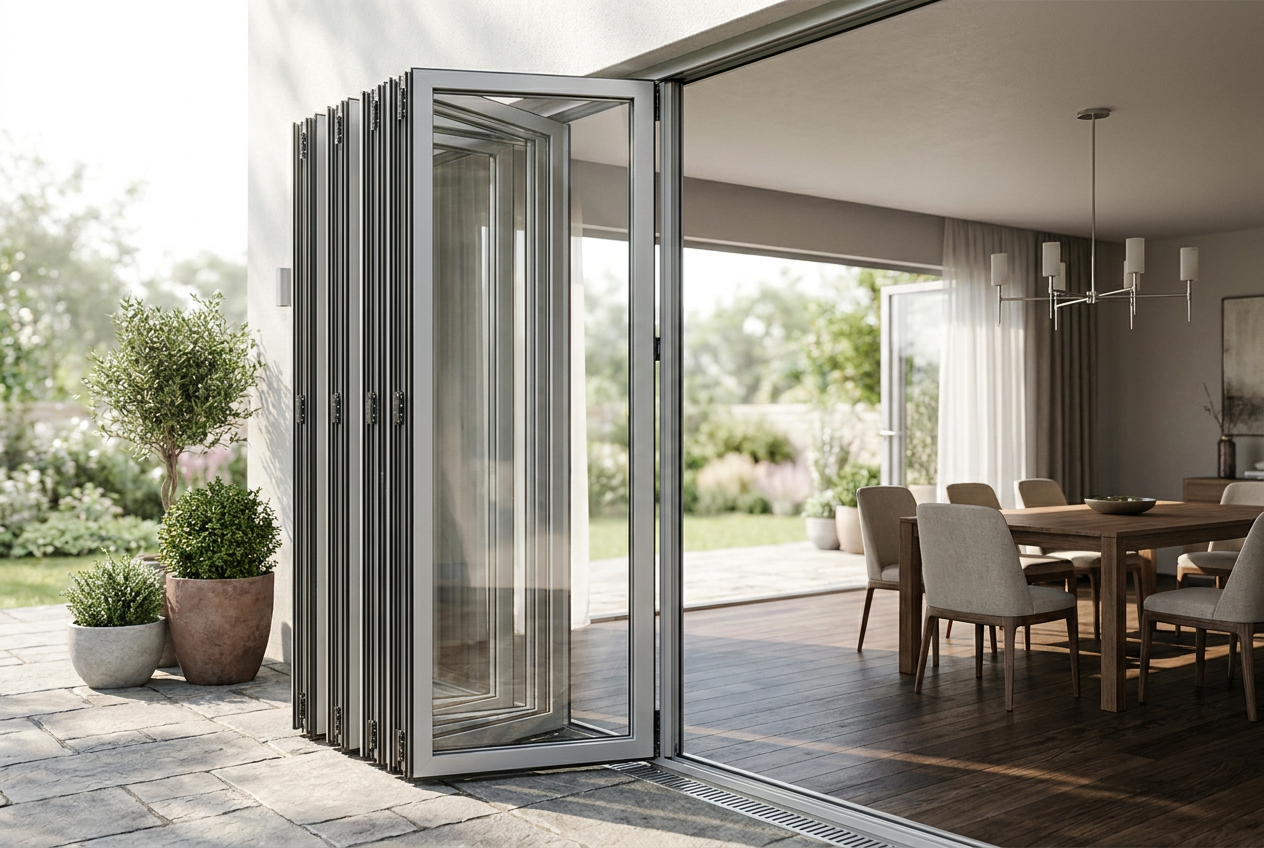

To open up 100% of a wall space, architects specify aluminum folding doors (or bi-fold doors). These multi-panel glazing systems fold accordion-style, stacking neatly to the side to turn an indoor room into an open-air terrace in seconds.
Sourcing from a specialized wholesale aluminum folding doors manufacturer in China allows contractors, distributors, and builders to procure highly customized bi-fold doors featuring slim frames, high-strength hardware, and compliant thermal break insulation at highly competitive prices.
This architectural guide covers multi-fold tracking, hardware mechanics, structural guidelines, and bulk import processes for wholesale buyers.
Structural Engineering: The Mechanics of Multi-Fold Systems
Unlike standard sliding or swing doors, folding doors feature multiple panels linked together by hinges. The entire door weight must be balanced safely across the track as the door folds and moves.
1. Top-Hung vs. Bottom-Supported Systems
How the weight of the folding panels is supported is a critical structural decision:
- Top-Hung Systems (Recommended): The door weight is suspended from the top track rail. This ensures exceptionally smooth gliding and keeps the bottom track flush and clean. *Requirement:* The structural header lintel above the opening must be fully load-bearing to hold the heavy glass weight without sagging.
- Bottom-Supported Systems: The door weight rides on the bottom floor track. This is ideal for renovation projects where the overhead header beam is not structurally load-bearing.
2. High-Durability Aluminum Alloy Frames
- Frame Strength: Made of 6063-T5 high-performance aluminum profiles with a wall thickness of 2.0mm to 2.5mm.
- Thermal Performance: Utilizing advanced multi-cavity polyamide thermal breaks (PA66 GF25) ensures excellent thermal resistance, keeping the building compliant with energy codes.
Panel Configuration Options: Customizing the Folding Path
Bi-fold doors offer highly flexible opening combinations. Panels can fold in a variety of directions:
- 3+0 Configuration: Three panels that fold and slide completely to one side.
- 3+1 Configuration: Three panels fold to one side, while one single panel opens as an independent swing door on the opposite side for easy daily access.
- 5+5 Configuration: A ten-panel massive folding door system where five panels stack to the left and five stack to the right, opening up spans of up to 10 meters wide.
Heavy-Duty Structural Hinge and Roller Mechanics:
To prevent heavy bi-fold panels from sagging over time, specify high-end mechanical hardware:
- Quad-Wheel Guide Rollers: Reinforced stainless steel or polymer guide wheels with sealed precision bearings that roll quietly and stably inside the track.
- Adjustable Hinges: Heavy-duty hinges with 3D adjustability (allowing vertical, horizontal, and depth fine-tuning) to correct any micro-settling of the building after installation.
Compliance and Wind-Load Weatherproofing Standards
Because bi-fold doors feature multiple panel vertical joints, weatherproofing and wind resistance require elite engineering:
| Technical Parameter | Sourcing Target | Standard / Testing Code |
|---|---|---|
| Wind Pressure Resistance | Class 3 – Class 4 (up to 2500 Pa) | ASTM E330 / AS2047 |
| Water Tightness | Zero leakage up to 350 Pa | ASTM E331 / EN 12208 |
| Intruder Security | 3-Point / 5-Point Locking Systems | EN 1627 / PAS 24 |
Richocean bi-fold doors use continuous double-layer EPDM compression gaskets between all folding panels. When the door is closed, the gaskets are highly compressed, creating an airtight, draft-free, and water-tight seal.
Step-by-Step B2B Import Sourcing Checklist
For commercial distributors, contractors, and builders, follow this checklist when importing bi-fold doors:
1. Lintel Deflection Analysis
Top-hung folding systems put massive structural strain on the overhead header lintel. Verify that your structural engineer calculates the lintel deflection under full dead load. The deflection must not exceed L/300 of the span to prevent the tracks from binding or jamming.
2. Flush Track Drainage Integration
To achieve a completely seamless, flush look between indoor and outdoor floors:
- Specify a flush floor drainage track.
- Ensure the exterior sub-floor has a built-in drainage trench to collect and drain away any rain run-off.
3. Factory QC Pre-Assembly and Inspection
Always require your manufacturer to completely assemble and cycle-test the folding doors in the factory before packing. Verify the smooth folding operation, locking alignment, and gasket seals. The manufacturer should send you high-resolution photos and video confirmations of this pre-assembly stage.
Frequently Asked Questions (FAQ)
What is the maximum width and height for a bi-fold door panel?
For heavy-duty aluminum folding doors, the maximum standard panel width is 1.0 to 1.2 meters, and the maximum panel height is 3.0 to 3.5 meters.
How do bi-fold doors handle daily entry without folding the entire wall?
By choosing a configuration with an odd number of folding panels on one side (such as a 3+1 or 5+0 layout), the leading panel acts as a standard independent daily swing door (active door). This allows you to walk in and out quickly without folding open the entire wall.
Do aluminum folding doors have high thermal efficiency?
Yes. When manufactured with thermal break aluminum frames, double-glazed Low-E glass filled with Argon gas, and warm-edge spacer bars, bi-fold doors achieve outstanding thermal performance, with U-values easily dropping below 1.6 W/m²K.
Conclusion: Transform Spaces with Richocean Folding Doors
Aluminum folding doors represent a high-value architectural addition that transforms residential homes and commercial spaces into luxurious, open-concept environments. Sourcing wholesale folding doors directly from Richocean provides builders, developers, and distributors with elite mechanical engineering, premium adjustable hardware, and compliant weather-sealed profiles shipped safely to your project at factory direct prices.
Contact our wholesale architectural department today to submit your project dimensions and receive free CAD shop drawings, layout configuration recommendations, and a custom wholesale factory quote.
