Heavy-Duty Aluminum Sliding Doors: Sourcing Custom Glazing Systems for High-End Villas
In the realm of high-end residential architecture and luxury villa design, the boundaries between indoor comfort and outdoor landscapes have dissolved. Architects continuously seek to maximize natural light, creating massive panoramic openings that merge living spaces with coastal, mountain, or garden vistas.

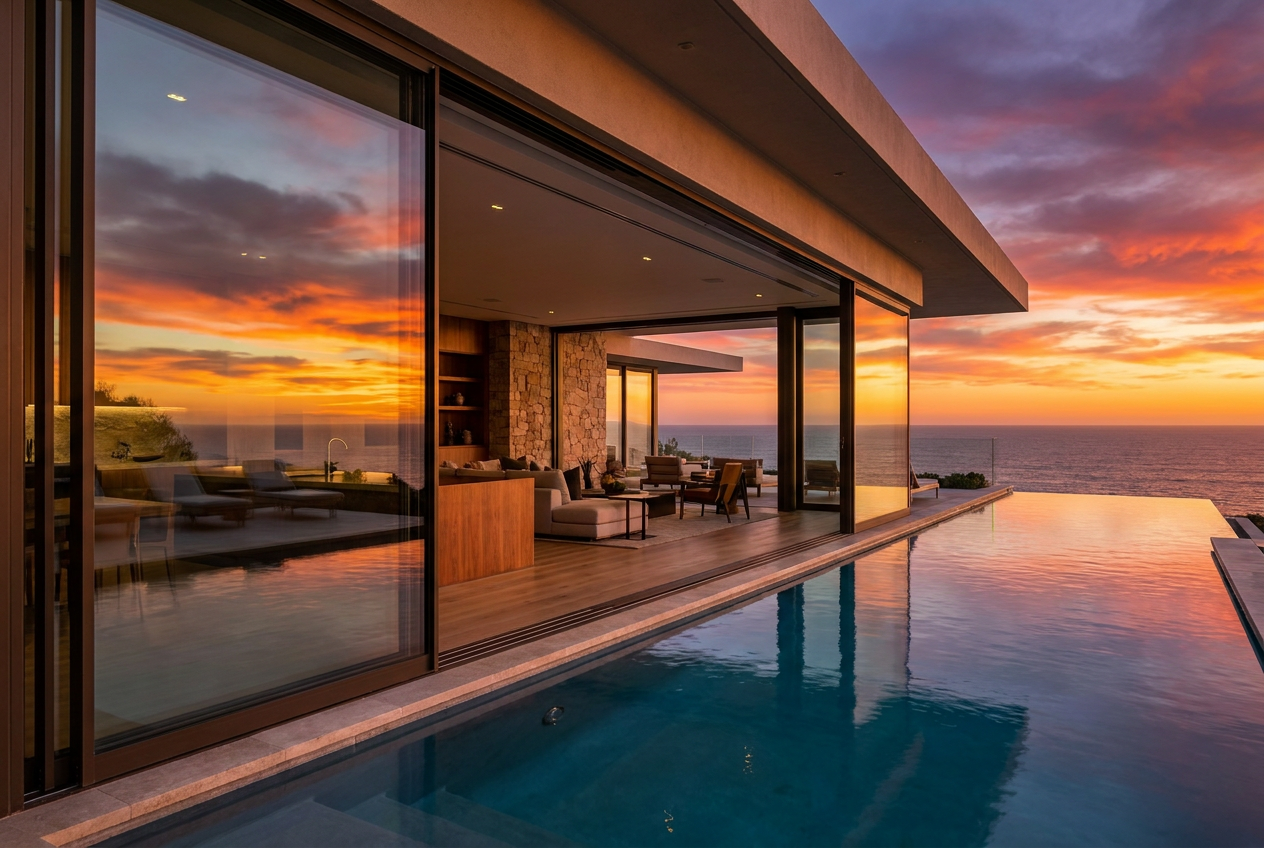

To achieve this minimalist, open-concept look, heavy-duty aluminum sliding doors are the ultimate architectural choice. These giant sliding glass walls feature slim sightlines, yet they are engineered to support massive glass weights, resist extreme wind pressures, and provide outstanding thermal insulation.
If you are a custom home builder, luxury developer, or premium window distributor, this guide details the structural design, roller mechanics, security systems, and sourcing specifications needed to select the perfect heavy-duty sliding door system.
Structural Frame Integrity: Engineering for Massive Openings
A standard sliding patio door is insufficient for high-end villas. Heavy-duty sliding doors are engineered to handle single panel heights of up to 4 meters and widths of up to 3 meters, with glass weights often exceeding 300 kilograms per panel.
1. Structural Aluminum Profiles
- Alloy Class: Frames are extruded from 6063-T6 or 6063-T5 high-strength structural aluminum.
- Profile Wall Thickness: Main frame profiles feature a wall thickness of 2.0mm to 3.0mm, ensuring the frame does not bend under high-velocity wind loads.
- Thermal Break Isolation: Multi-cavity polyamide thermal barrier strips (minimum 24mm wide) isolate the cold exterior frame from the warm interior, achieving an outstanding U-value (down to 1.4 W/m²K) and preventing frame condensation.
2. Panoramic and Ultra-Slim Sightline Designs
To provide uninterrupted views, luxury sliding door systems utilize slim-interlock designs:
- Slim-Line Interlocks: The overlapping section between sliding panels is minimized to a mere 20mm to 30mm wide.
- Hidden Outer Frame: The outer track and side frames can be completely recessed into the floor, ceiling, and walls, creating a seamless, flush glass wall effect.
Roller Mechanics and Track Engineering: Effortless Operation
A giant glass panel weighing 300kg is useless if a user cannot slide it open easily. The secret to effortless, whisper-quiet operation lies in advanced mechanical rollers and track engineering:
1. Heavy-Duty Stainless Steel Roller Carriages
- Tandem Stainless Steel Rollers: Multi-wheel carriages equipped with high-durability, self-lubricating ball bearings that evenly distribute glass weight.
- Weight Capacity: Each roller carriage is rated to support up to 400kg of continuous load, allowing panels to slide with a simple touch of a finger.
2. Lift-and-Slide (Hebe-Schiebe) Mechanical Hardware
For maximum weather sealing and effortless operation, builders specify Lift-and-Slide systems (such as German Roto, Sobinco, or Siegenia hardware):
- Lifting Mechanism: Turning the handle 180 degrees downwards activates internal gear levers that lift the entire door panel slightly off its weather seals, allowing it to glide on the track with minimal friction.
- Dropping and Sealing: Rotating the handle upwards drops the heavy door back down onto its compressed EPDM rubber gaskets, locking it firmly in place to achieve a near-hermetic seal against wind and water.
3. Flush-Threshold Drainage Tracks
- Barrier-Free Flooring: Flush track thresholds designed to sit completely level with the finished interior floor, eliminating tripping hazards.
- Integrated Drainage Channels: Heavy-duty tracks feature hidden slotted drain holes and built-in sloped collection trays that direct heavy rainwater away from the building interior.
Security, Compliance, and Wind-Load Standards
Heavy-duty sliding doors are large targets for environmental forces and intruders. High-end villa projects demand certified compliance:
| Technical Metric | Sourcing Target | Standard / Testing Code |
|---|---|---|
| Wind Load Resistance | Class 4 / up to 3000 Pa | ASTM E330 / AS2047 |
| Water Penetration | Zero leakage up to 450 Pa | ASTM E331 / EN 12208 |
| Air Infiltration | Under 0.1 m³/h.m² | ASTM E283 / EN 12207 |
| Intruder Resistance | Multipoint locking / RC2 Class | EN 1627 / PAS 24 |
Richocean heavy-duty aluminum sliding doors utilize advanced European multi-point security locking systems with anti-lift pins, preventing panels from being pried open by intruders.
Sourcing Checklist for Custom Villas and Commercial Projects
When importing heavy-duty aluminum sliding doors, follow this structured process:
1. Concrete Floor and Recess Planning
Provide detailed floor cross-section designs early. Ensure your contractor coordinates the recessed track dimensions, floor drainage connections, and structural lintel beams with the door manufacturer before slab pouring.
2. Glass Configuration Selection
- Acoustic and Thermal Insulation: Double or triple-glazed units filled with Argon gas and Low-E coatings are standard.
- Impact and Wind Safety: Heavy-duty doors in coastal zones must feature laminated safety glass to handle hurricane impacts.
3. Factory Pre-Assembly and Fitting Verification
Ensure the factory performs complete assembly checks of the frame miters, tracks, locking gears, and EPDM gaskets before shipping. This prevents on-site alignment errors and expensive field retrofits.
Frequently Asked Questions (FAQ)
What is a lift-and-slide door, and how does it work?
A lift-and-slide (Hebe-Schiebe) door uses specialized gear hardware. When the handle is turned, the panel is lifted off the tracks to slide effortlessly. When locked, the panel drops onto gaskets, compressing them to create a superior air, water, and thermal barrier compared to standard sliding doors.
Can sliding doors with slim sightlines withstand heavy winds?
Yes. Although the interlock profile is extremely slim (down to 20mm), it is reinforced with internal structural aluminum webs and can be built with steel reinforcement bars to resist extreme wind loads up to 3.0 kPa.
How do flush tracks drain rainwater?
Flush tracks feature custom internal slope systems and slotted drainage outlets located below the floor level. These outlets connect to secondary sub-floor drain pipes, ensuring rainwater is channeled away even during intense storms.
Conclusion: Partner with Richocean for High-End Glazing
A custom luxury villa is a statement of architectural excellence. By partnering with a dedicated manufacturer like Richocean, builders and architects secure access to elite panoramic sliding door systems, lift-and-slide German engineering, and AS2047/CE certified frames customized exactly to your floor-to-ceiling dimensions.
Contact our luxury villa project division today to submit your opening measurements and receive free CAD shop designs, drainage engineering plans, and a custom factory wholesale quote.
