Patio Doors and Sliding Glass Doors: Wholesale Supply from Foshan Guangdong Factory

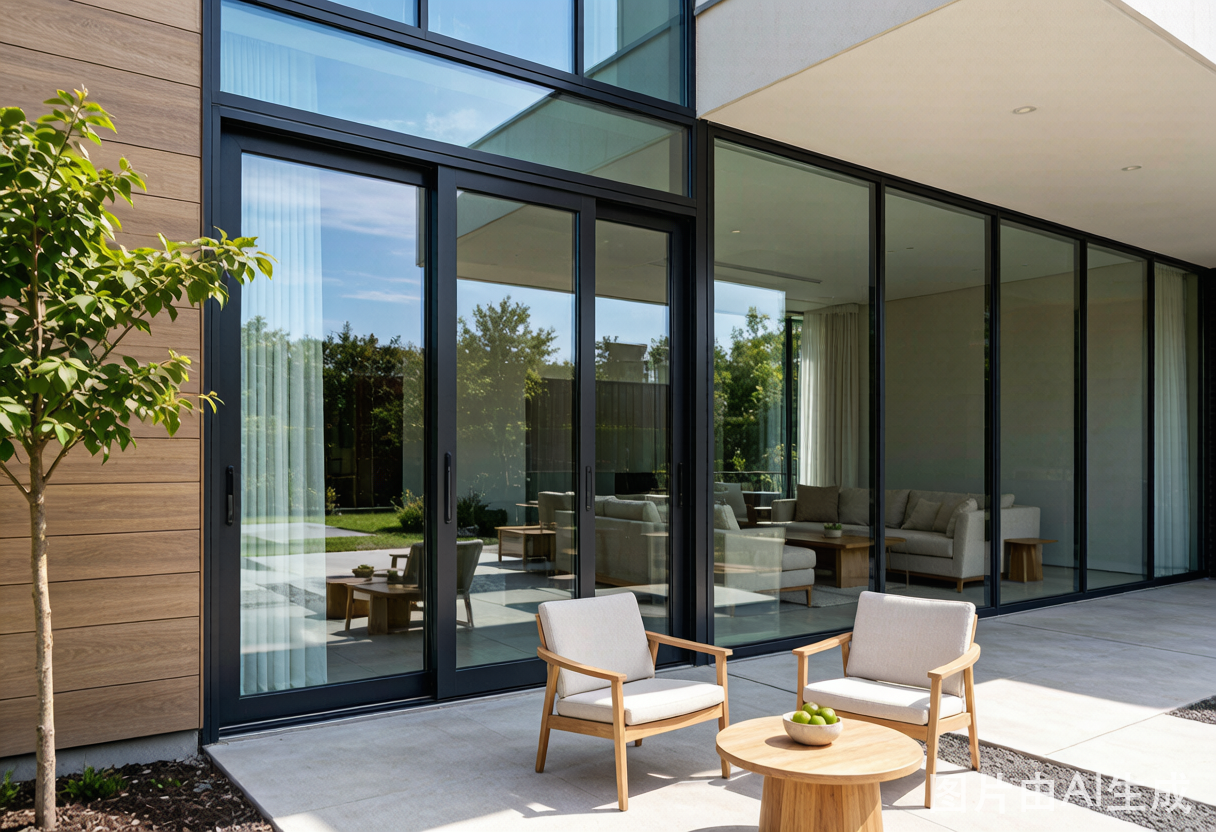

Aluminum patio sliding glass doors wholesale from Guangdong factory

Foshan, Guangdong Province remains the largest aluminum door and window manufacturing hub in China, producing over 60% of the country’s aluminum extrusion profiles. For importers and building contractors sourcing patio doors in bulk, direct factory procurement from this region cuts intermediary costs by 18-35% compared to trading company channels. This article breaks down the technical specifications, pricing data, and procurement parameters for aluminum patio sliding doors from Foshan manufacturers.

Sliding Patio Door Specifications and Technical Parameters

The sliding patio door category covers configurations from 2-panel to 6-panel multi-track systems. Standard aluminum alloy grades used in Foshan production lines include 6063-T5 for frame profiles and 6061-T6 for structural reinforcement components.

Frame Profile and Wall Thickness Data

Door Type	Frame Depth (mm)	Wall Thickness (mm)	Sash Width (mm)	Max Panel Weight (kg)
2-Panel Sliding	100 – 150	1.8 – 2.2	600 – 1200	150
3-Panel Sliding	120 – 180	2.0 – 2.5	500 – 1000	180
4-Panel Sliding	150 – 200	2.0 – 3.0	400 – 900	200
Lift-and-Slide	120 – 200	2.0 – 2.5	800 – 1500	400
Tilt-and-Slide	130 – 190	2.0 – 2.2	700 – 1300	250

Glass Configuration and Thermal Performance

Standard glass options for Foshan-produced sliding patio door systems:

Tempered single glazing: 5mm / 6mm / 8mm, U-value 5.7 W/m²K, suitable for tropical climates
Tempered double glazing: 5mm+12A+5mm, U-value 2.7 – 3.0 W/m²K, argon-filled option available
Tempered triple glazing: 5mm+12A+5mm+12A+5mm, U-value 1.5 – 1.8 W/m²K, for passive house requirements
Laminated safety glass: 6.38mm / 8.38mm / 10.38mm PVB interlayer, meets EN 356 P2A-P5A
Low-E coated glass: Single-silver or double-silver coating, SHGC 0.25 – 0.60, depending on climate zone

Sliding Glass Doors: Material Configurations and Performance Data

Sliding glass doors from Foshan factories support multiple material combinations depending on climate requirements and budget constraints. The thermal break system is the single largest variable affecting energy performance.

Thermal Break Strip Specifications

Strip Material	Width (mm)	I-Beam Shape	Thermal Conductivity (W/m·K)	Application
PA66 GF25 Nylon	14.8 – 35.3	C-type / I-type	0.30	Standard thermal break
PA66 GF25 + Polyurethane	24 – 44	Multi-chamber	0.22	Enhanced insulation
Polyurethane (PU) Pour-and-Cut	18 – 34	Solid bridge	0.14	High-performance cold climate

Surface Finishing Process Parameters

Foshan manufacturers predominantly use the following surface treatment lines:

Powder coating: AkzoNobel / Tiger / PPG approved powders, 60-80 μm film thickness, QUV-B 1000-hour test, AAMA 2603/2604/2605 compliance
PVDF fluorocarbon coating: 2-coat (30-35 μm) or 3-coat (40-45 μm) systems, Kynar 500 resin minimum 70%, AAMA 2605 standard, 10-year color warranty
Anodizing: AA10 to AA25 grades (10-25 μm oxide layer), GB/T 5237.2 / EN 12373-1 standards
Wood-grain transfer (sublimation): 180-220°C transfer temperature, 0.12-0.15mm transfer film, SGS-tested UV resistance
Electrophoretic coating: Matte/semi-gloss/high-gloss finish, 12-25 μm film thickness

Patio Sliding Door Installation and Waterproofing Procedures

Field installation accounts for approximately 30% of long-term patio sliding door performance issues, with water ingress being the primary failure mode. Foshan factory technical teams provide installation manuals covering the following critical steps.

Threshold and Sill Waterproofing Sequence

Verify concrete subfloor level tolerance: ±3mm over 2m span. Grind high spots; fill low areas with non-shrink grout.
Apply 2mm-thick modified bitumen waterproofing membrane extending 150mm up the vertical wall on both sides of the opening.
Install aluminum sub-sill with 5° outward slope. Apply continuous 8mm butyl tape bead between sub-sill and waterproofing membrane.
Position main sill on sub-sill with EPDM gasket. Apply silicone sealant at all sill-to-jamb junctions before frame fastening.
After frame anchoring, inject low-expansion PU foam (density 15-20 kg/m³) into the 10-15mm perimeter gap. Do not overfill — foam expansion pressure exceeding 0.3 N/cm² can deform aluminum frames.
Apply exterior perimeter sealant: neutral-cure silicone, minimum 6mm x 6mm triangular bead, tooled against both surfaces. Allow 24-hour curing before water testing.

Hardware Adjustment and Commissioning

After frame installation, roller adjustment is performed as follows:

Panel lift height: adjust roller screws so panel clears sill by 5-7mm when sliding
Lateral alignment: equal gap (3-4mm) between panel edge and frame on both sides
Locking point engagement: striker plate should engage latch bolt with 2mm minimum overlap
Slide test: fully open and close each panel 10 times at 0.5 m/s; no binding or scraping permitted
Water test (optional per ASTM E1105): spray 3.4 L/min·m² at 30-35 kPa differential pressure for 15 minutes; zero water penetration on interior side

Sliding Door Pricing, MOQ and Procurement Data

Foshan factory-direct pricing for aluminum sliding doors follows volume-tiered structures. Prices below represent FOB Foshan / Guangzhou port, excluding sea freight and import duties.

FOB Price Reference by Configuration

Configuration	Standard Spec	MOQ 10 Units (USD/sqm)	MOQ 50 Units (USD/sqm)	MOQ 100+ Units (USD/sqm)
2-Panel Non-Thermal	6063-T5, single glazed 6mm	$145 – 175	$128 – 155	$115 – 138
2-Panel Thermal Break	PA66 24mm, double glazed 5+12A+5	$195 – 235	$172 – 208	$155 – 185
3-Panel Thermal Break	PA66 24mm, double glazed, 3-track	$220 – 265	$195 – 235	$175 – 210
Lift-and-Slide Thermal	PA66 30mm, double glazed, up to 400kg	$310 – 380	$275 – 340	$248 – 305
Floor-to-Ceiling (2.7m+)	PA66 35.3mm, double glazed, reinforced	$340 – 420	$305 – 375	$275 – 338

Inclusions: aluminum frame, glass panels, stainless steel rollers, multi-point lock, handle, EPDM gaskets, assembly screws, and crating. Exclusions: installation labor, flashings, sealants, and site-specific fixings.

Procurement Parameters

Parameter	Standard Value	Remarks
Minimum Order Quantity	10 units per configuration	Mixed container accepted for 50+ units
Production Lead Time	25 – 35 working days	From deposit confirmation and drawing approval
Payment Terms	T/T 30% deposit, 70% before shipment	L/C at sight for orders above $50,000
Packaging	EPE foam + 5-layer corrugated carton + plywood crate	Container loading: 80-120 units per 40ft HQ
Warranty	5 years on aluminum frame, 10 years on glass seal, 2 years on hardware	Spare parts: 2% of hardware components included FOC
Sample Policy	1 unit at 50% of MOQ 10 price; full refund on first bulk order above $20,000	Sample lead time: 15-20 working days

Quality Certifications and Foshan Factory Production Standards

Foshan-based sliding door manufacturers serving export markets maintain compliance with multiple international certification systems. Verification of these certifications should be conducted through the issuing body, not the manufacturer’s claim alone.

Applicable Certification Standards

Standard	Scope	Test Parameters	Certification Body Example
EN 14351-1	CE marking for external pedestrian doorsets	Air permeability, watertightness, wind load resistance, thermal transmittance, acoustic performance	IFT Rosenheim
NFRC 100 / 200 / 400	North American thermal and solar performance	U-factor, SHGC, VT, air leakage (≤0.3 cfm/ft²)	NFRC accredited simulator/lab
AAMA/WDMA/CSA 101/I.S.2/A440	NAFS — North American Fenestration Standard	Class AW (architectural), CW (commercial), R (residential), LC (light commercial)	Intertek, QAI, Keystone
AS 2047	Australian windows and doors performance	Structural deflection L/250, water penetration resistance 150-450 Pa	NATA-accredited lab
Miami-Dade NOA / Florida Product Approval	Hurricane impact resistance (HVHZ)	Large missile impact (TAS 201), cyclic wind pressure (TAS 203), forced entry (ASTM F588)	Miami-Dade BCCO
ISO 9001:2015	Quality management system	Production process control, incoming material inspection, final QC	SGS, TÜV Rheinland

Factory Production Quality Control

A standard Foshan aluminum door factory with export-grade QC operates on the following framework:

Incoming aluminum billet inspection: spectrometer analysis for alloy composition (Si: 0.20-0.60%, Mg: 0.45-0.90%, Fe ≤ 0.35%, Cu ≤ 0.10%, Mn ≤ 0.10%)
Extrusion dimensional check: profile wall thickness tolerance ±0.15mm, straightness ≤ 1mm/m
Pre-treatment: 7-tank chromate-free conversion coating line (degreasing → rinsing → Zr/Ti conversion → rinsing → DI rinsing → drying)
Post-coating QC: cross-hatch adhesion test (ISO 2409, rating 0-1), pencil hardness ≥ H (ASTM D3363), impact resistance 2.5 N·m (AAMA 2604)
Assembly inspection: 100% visual inspection; random 10% dimensional check on diagonal, squareness, and gap tolerances (BS 6375 / EN 1026)
Pre-shipment random testing: pull test on locking points (≥ 800N), roller cycle test (10,000 cycles with no degradation)

Real Project Data and Performance Comparisons

The following data is drawn from actual Foshan-manufactured patio sliding door installations across different climate zones and building types.

Case 1: Residential Villa, Dubai, UAE

Project scope: 12 sets of 3-panel thermal break sliding doors, 3.0m × 2.4m each (86.4 sqm total)
Configuration: PA66 24mm thermal break, 6mm+12A+6mm double glazed with solar-control Low-E (SHGC 0.28)
Performance: Indoor surface temperature measured 29°C at 45°C outdoor ambient (ΔT 16°C), exceeding specification target of 12°C reduction
Cost comparison: FOB Foshan $210/sqm × 86.4 sqm = $18,144. Equivalent European-sourced doors quoted at €420/sqm delivered = €36,288. Savings: 50% inclusive of sea freight and 5% UAE customs duty.
Installation notes: Sill waterproofing followed the 6-step procedure in Section 3. Zero water ingress reported after 2 monsoon seasons.

Case 2: Multi-Unit Residential, Toronto, Canada

Project scope: 48 sets of lift-and-slide patio doors, 2.4m × 2.1m (242 sqm total)
Configuration: PA66 35.3mm multi-chamber thermal break, 6mm triple glazed with argon fill, NFRC-rated U-value 1.6 W/m²K
Performance data: Condensation resistance factor (CRF) 62, air leakage 0.8 L/s·m² at 75 Pa (exceeds NAFS A3 rating)
Cost breakdown: FOB $338/sqm × 242 sqm = $81,796. North American equivalent: $580/sqm × 242 = $140,360. Total saving: $58,564.
Logistics: 2 × 40ft HQ containers, 35-day production, 28-day sea transit Foshan → Toronto via Vancouver rail

Performance Comparison: Thermal vs Non-Thermal Sliding Doors

Parameter	Non-Thermal (Single Glazed)	Standard Thermal Break (Double Glazed)	High-Performance Thermal (Triple Glazed)
Overall U-value (W/m²K)	5.2 – 5.8	2.5 – 2.9	1.4 – 1.8
Air Leakage (m³/h·m @ 100Pa)	≤ 6.0	≤ 3.0	≤ 1.5
Water Tightness (Pa)	150 – 300	300 – 600	600 – 900
Wind Load Resistance (Pa)	1200 – 1600	2000 – 3000	3000 – 4500
Sound Reduction (Rw, dB)	28 – 32	34 – 38	39 – 44
Price (USD/sqm, MOQ 50)	$128 – 155	$172 – 235	$275 – 375

Order Process and Shipping from Guangdong

The Foshan factory-to-project procurement workflow for sliding patio doors follows a documented sequence to minimize specification errors and delivery delays.

Pre-Production Stage

Inquiry: Submit project schedule, performance requirements (wind zone, climate zone, acoustic targets), opening dimensions, and finish preference. Include target price range to allow appropriate specification matching.
Quotation: Factory returns line-item quotation within 2-3 working days, including profile system, glass spec, hardware brand/model, and per-unit FOB pricing. Thermal simulation report available at no additional cost for projects above 50 units.
Sample approval: Production sample (not pre-existing stock) for sign-off. Covers frame corner joint quality, gasket fitment, roller operation, and finish color match under D65 daylight.
Shop drawings: CAD drawings for each opening size showing frame cross-section, glass edge clearance, drainage path, and fixing point locations. Approval required before material procurement.

Production and Delivery

Material procurement: Aluminum billet ordered to heat treatment specification. Glass cut, tempered, and (if applicable) IG-unit assembled in controlled-environment cleanroom (dew point monitored).
Production tracking: Weekly progress photos and QC reports shared via project communication channel. Factory visits available with 5 working days’ notice.
Pre-shipment inspection: Third-party inspection (SGS, Bureau Veritas, or client-appointed) conducted at factory. AQL 2.5 Level II sampling standard; critical defects zero tolerance.
Container loading: Factory loading supervised with photographic documentation. Container seal number recorded and shared before departure.
Shipping: FOB Guangzhou Nansha or Shenzhen Yantian port. Typical transit times: Middle East 15-18 days, Europe 28-32 days, North America West Coast 18-22 days, Australia 12-15 days.

For additional product specifications or to request a quotation, visit the Sliding Doors product page or browse patio door configurations. Technical documentation for thermal break systems is available on the Resources page.
