Sourcing Top-Hung Aluminum Awning Windows from China: Ventilation and Performance Specs for Builders

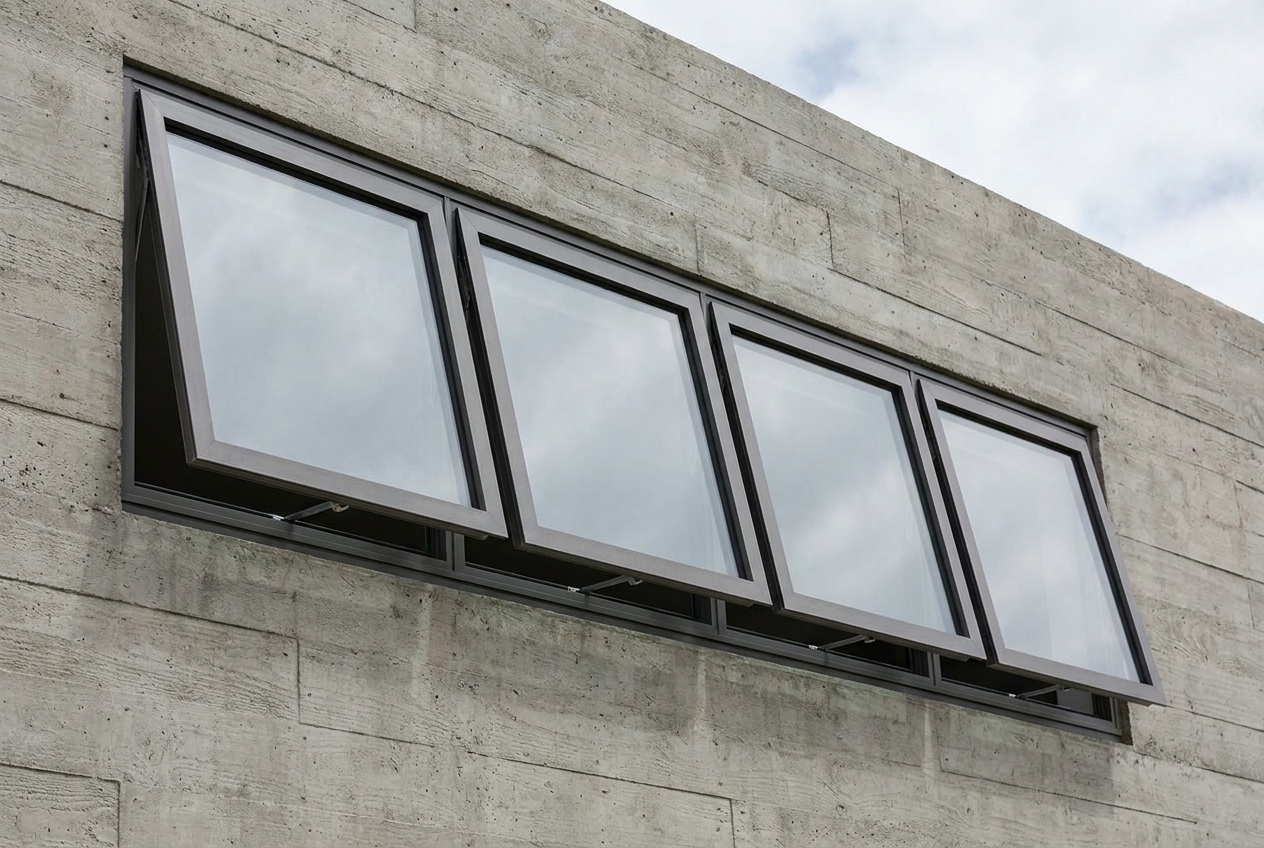

For modern commercial developments, educational facilities, and luxury residential projects, designing ventilation systems that can remain open even during heavy rain is a major design priority. Top-hung aluminum awning windows represent the ideal architectural choice, swinging outwards from the bottom to create an elegant protective canopy.
Sourcing these high-performance systems from a specialized china aluminum awning windows supplier allows builders, contractors, and glazing wholesalers to obtain customized designs with premium finishes and advanced hardware at factory direct prices.
This B2B sourcing guide outlines the core structural specifications, ventilation mechanics, weatherproofing, and import compliance checklists required for professional bulk procurement.
1. Structural Profiles: Strength and Thermal Break Engineering
Awning windows are enqueued on exterior facades and exposed to direct wind loads, requiring robust aluminum frame structures:
- High-Strength Alloys: Frames are extruded from 6063-T5 or 6063-T6 structural aluminum, providing high structural stability.
- Wall Thickness Compliance: To comply with commercial building standards, specify a wall thickness of 1.4mm to 2.0mm.
- Polyamide Thermal Barriers: A continuous multi-cavity polyamide bar (such as PA66 GF25) isolates the frame, lowering U-values and preventing frame condensation.
2. Ventilation and Hardware Engineering
The security and durability of a top-hung window depend entirely on its hinge and locking mechanics. B2B buyers must specify heavy-duty hardware:
- SUS304 Stainless Steel Friction Stays: Heavy-duty friction hinges enqueued on the sides, designed to support sashes weighing up to 80 kilograms and remain open stably under high winds.
- Chain Winders: For hard-to-reach locations, manual or electric chain winders can be integrated, allowing users to open and close the awning sash with a simple turn of a crank or wall switch.
- Multi-Point Locking System: Engaging three or four secure lock points along the sash when closed to ensure high airtightness and structural security.
3. Global Compliance and Weatherproofing Standards
Awning windows must hold verified compliance ratings to pass local inspections in developed export markets:
| Target Market | Code Compliance | Focus Area | Certification |
|---|---|---|---|
| Australia & NZ | AS2047 / AS1288 | Water tightness, structural deflection | AS2047 Certificate |
| North America | NFRC / AAMA | Energy efficiency, U-factor, solar heat gain | NFRC Certified |
| European Union | EN 14351-1 | Structural resistance, safety loading | CE Mark |
Richocean awning window systems are thoroughly tested and certified in accordance with AS2047 and CE standards, utilizing double-layer EPDM compression gaskets to ensure complete water tightness under severe storms.
4. Bulk Sourcing and Customization Checklist
Step 1: CAD Layout & Sizing Verification
Provide detailed dimensions. The factory will design custom shop drawings specifying single-light or multi-light combinations to match your architectural requirements.
Step 2: High-Durability Surface Finish
Specify long-lasting surface coatings:
- Fluorocarbon Powder Coating (PVDF): Highly recommended for coastal projects due to its superior resistance to salt-air corrosion and UV fading.
- Anodizing: Provides a premium, scratch-resistant metallic finish (such as matte black, dark bronze, or silver) highly suited for ultra-modern residential facades.
Step 3: Bulk Logistics and Plywood Packaging
Sashes containing glass require maximum transport security. Ensure your factory uses a 5-layer export packaging line with high-density foam, heavy-duty cardboard edge guards, and solid plywood crates.
FAQ
Can awning windows remain open during rain?
Yes! Because awning windows swing outwards from the bottom, the sash acts as a protective canopy, allowing refreshing ventilation while preventing rainwater from entering the building.
Can flyscreens be integrated into custom awning windows?
Yes. Richocean awning windows support interior retractable roll-up screens or removable magnetic flyscreens, allowing easy cleaning and insect protection.
Conclusion: Partner with Richocean for Sourcing Success
Top-hung aluminum awning windows from Richocean offer B2B buyers an elegant, ventilation-friendly, and cost-effective glazing solution. Partnering directly with our specialized factory guarantees elite engineering, certified safety compliance, and robust export logistics delivered directly to your project site.
Contact our commercial window engineering team today to request custom CAD shop drawings and receive a free bulk factory direct quote.
