The Ultimate B2B Guide to Aluminum Casement Windows: Manufacturer Pricing, Technical Standards, and Global Sourcing (2026)
In the competitive landscape of global architectural procurement, aluminum casement windows remain a cornerstone for high-end residential and commercial projects. As a leading Aluminum Casement Windows Manufacturer in China, Richocean provides this comprehensive technical guide to help real estate developers, architects, and wholesalers navigate the complexities of sourcing, compliance, and engineering specifications. This guide moves beyond marketing fluff to deliver hard data on structural performance, pricing structures, and R&D innovations.
1. Core Price Determinants: Decoding the Casement Window Price List
Understanding the cost structure of high-performance aluminum casement windows is essential for accurate project budgeting. Unlike standard off-the-shelf products, B2B procurement involves custom configurations where small technical changes can significantly impact the final quote.
A. Aluminum Alloy and Profile Thickness
The foundation of any window is the aluminum extrusion. Richocean uses 6063-T6 primary aluminum, which offers superior tensile strength and corrosion resistance compared to recycled alternatives.
- Wall Thickness: For B2B commercial projects, we recommend a minimum wall thickness of 1.4mm to 2.0mm for casement profiles. Thicker profiles (2.0mm+) are required for high-wind load areas (hurricane zones) or oversized vents.
- Thermal Break Technology: The integration of high-density PA66GF25 (Polyamide 66 with 25% glass fiber) thermal strips creates a barrier between the interior and exterior frames, preventing thermal bridging.
B. Glazing Configuration (The U-Value Factor)
Glass typically accounts for 40-60% of the window’s total area.
- Double Glazed Units (DGU): Standard 5mm+12A+5mm configuration with Argon gas filling.
- Triple Glazed Units (TGU): Recommended for extreme climates (e.g., Northern Europe, Canada) to achieve U-values below 1.2 W/m²K.
- Low-E Coatings: Sputtered vacuum coatings (Silver layers) are applied to minimize infrared heat transfer while maintaining high visible light transmission (VLT).
C. Hardware Systems (Hardware Is the Engine)
A window is only as good as its movement mechanism. Richocean offers two tiers:
1. German Engineering: Systems from SI, G-U, or Roto for the highest durability.
2. Richocean Precision Series: Custom SS316 multi-point locking systems designed for coastal anti-corrosion requirements.
D. Finishing and Aesthetic Treatments
The architectural appeal of casement windows is heavily influenced by the surface treatment.
- Powder Coating: We use architectural-grade powders (AkzoNobel/PPG) which are applied in a vertical line to ensure 60-80 micron thickness. This is the standard for most B2B projects due to its cost-effectiveness and 10-15 year color warranty.
- Anodizing: For high-end coastal projects, anodizing (Class 25) provides an integrated metallic finish that cannot peel or flake, offering the ultimate protection against salt spray.
- Fluorocarbon (PVDF): Recommended for monumental buildings, PVDF coatings offer superior resistance to pollutants and chalking, maintaining the “new” look for over 20 years.
2. International Certification Standards: Why Richocean is a Top 10 Casement Windows Factory
Global sourcing requires strict adherence to regional building codes. As a verified China Aluminum Windows Supplier, our casement series is engineered to pass the following rigorous tests:
AS2047 (Australian Standard)
Australia has some of the harshest UV and wind conditions. Our windows undergo:
- Deflection Testing: Ensuring the frame doesn’t bend under extreme wind pressure.
- Air Infiltration: Minimizing energy loss through frame gaps.
- Water Penetration Resistance: Essential for coastal villas in Queensland or NSW.
NFRC & AAMA (North American Standards)
For projects in the USA and Canada, energy rating (U-factor, SHGC) and structural integrity are paramount. Our NFRC-certified casement windows help builders meet LEED and Energy Star requirements.
CE Certification (European Standard)
Mandatory for the EU market, focusing on safety, health, and environmental protection. Our EN 14351-1 compliance ensures smooth customs clearance and legal installation across Europe.
3. Regional Usage Habits: Tailoring Design to Local Climates
One size does not fit all in the B2B world. A professional Factory must understand how geographic factors influence window design.
- Australia & Southeast Asia: Outward-Opening Casements are preferred. They allow for screen integration on the inside and maximize airflow. In cyclone-prone areas, specialized stay-arms are used to prevent the window from swinging uncontrollably.
- North America: Large fixed panes with small casement “vent” windows are popular for modern “window wall” aesthetics.
- Europe (Germany/UK): Inward-Opening (Tilt & Turn) or standard inward casements are the norm for easier cleaning from the inside and improved airtightness due to the compression seal design.
- Middle East: Focus shifts to Solar Heat Gain Coefficient (SHGC). High-reflectivity coatings are mandatory to combat the 50°C+ exterior temperatures.
4. Richocean R&D: The Core Competitive Edge of Our Factory
Why do elite developers choose Richocean over thousands of other suppliers? It comes down to our internal engineering breakthroughs.
±0.1mm CNC Precision Engineering
Traditional manual assembly leads to gaps that compromise insulation. Richocean utilizes fully automated Italian CNC processing lines to ensure every miter joint and hardware slot is cut with sub-millimeter precision. This results in a “seamless” frame corner that is virtually indestructible.
Hidden Drainage System: The Engineering Behind the Aesthetics
Standard windows often rely on visible, unsightly plastic drainage caps on the exterior frame to evacuate water. Richocean’s R&D team has eliminated this compromise through our proprietary internal isobaric drainage system.
By engineering precise pressure-equalization chambers within the profile, water is channeled through a hidden vertical pathway and released through a concealed downward-facing slot. This not only maintains a clean, architectural look without visible caps but also significantly improves water tightness under high wind-pressure scenarios, as the pressure differential helps “push” water out rather than allowing it to be forced inward. This system is rated for extreme coastal environments where heavy rainfall and high-velocity winds are simultaneous threats.
Triple EPDM Sealing Gaskets: 20-Year Durability Guarantee
While most standard casement window factories use two layers of lower-grade PVC or TPE seals, Richocean integrates three layers of automotive-grade EPDM (Ethylene Propylene Diene Monomer).
1. The External Weather Seal: Blocks dust, insects, and bulk water.
2. The Central Isobaric Seal: The most critical layer, creating an airtight pressure chamber that stops energy transfer.
3. The Internal Acoustic Seal: Further dampens sound waves and provides a final barrier against air infiltration.
EPDM is selected for its exceptional resistance to ozone, UV radiation, and temperature extremes (-40°C to +120°C). Unlike PVC, it will not become brittle or shrink over a 20-year operational lifecycle, ensuring the window’s U-value remains stable for decades.
5. Real Engineering Cases: Proven Performance in Global Landmarks
Case Study: Luxury Waterfront Villa, Miami, Florida
- Challenge: High salt-spray environment and strict hurricane impact requirements (HVHZ).
- Solution: Richocean supplied heavy-duty casement windows with 2.2mm profiles and SentryGlas (SGP) laminated safety glass.
- Result: The windows passed the TAS 201/202/203 missile impact tests, providing the owner with peace of mind during the Atlantic hurricane season.
Case Study: Commercial Office Complex, Sydney, Australia
- Challenge: High-traffic area requiring superior acoustic insulation (Rw > 40dB).
- Solution: Custom casement windows with asymmetrical glazing (10mm + 12A + 6mm) and sound-dampening PVB interlayers.
- Result: Interior noise levels were reduced by 45dB, creating a premium quiet work environment despite the proximity to the CBD rail line.
6. Technical FAQ: Common Questions from B2B Procurement Officers
Q1: What is the maximum size for a single casement vent?
Typically, we recommend a maximum width of 900mm and height of 2400mm. For larger vents, we use specialized heavy-duty friction stays and 4-point locking systems to prevent sagging over time. Our R&D team has tested vents up to 3000mm in height for specialized architectural applications using reinforced heavy-duty stainless steel hinges.
Q2: How does Richocean ensure color consistency in bulk orders?
We use AkzoNobel or PPG powder coatings from a single production batch for each project. Every batch is verified using a digital spectrophotometer to ensure ΔE < 1.0, ensuring the windows on the 20th floor look identical to those on the ground floor. We provide a Certificate of Conformity for color stability for every shipment.
Q3: Can your casement windows be integrated into Smart Home systems?
Yes. We can factory-install hidden electric actuators (24V DC) that allow the windows to be opened via wall switch, remote control, or integrated building management systems (BMS). These actuators are tested for 30,000+ cycles and feature obstruction-sensing safety protocols.
7. Bulk Procurement & Wholesale Price List Reference (2026)
To assist B2B buyers in preliminary budgeting, we provide the following indicative price list for wholesale aluminum casement windows (MOQ: 1x20GP container). Please note that final pricing depends on glass specifications and hardware selection.
| Series Code | Description | Profile Thickness | Glazing Type | Est. Unit Price (USD/SQM) |
|---|---|---|---|---|
| RC-CW65 | Standard Thermal Break Casement | 1.4mm | Double Clear (5+12A+5) | $120 – $145 |
| RC-CW80 | Heavy-Duty High-Insulation | 1.8mm | Double Low-E (6+12A+6) | $155 – $180 |
| RC-CW100 | Ultra-Performance Hurricane Impact | 2.2mm | Laminated Impact (6+1.52PVB+6) | $210 – $260 |
| RC-CW-PRO | Custom Architectural Series | 2.5mm+ | Triple Glazed (5+9A+5+9A+5) | $280+ (Project Based) |
8. Installation & Maintenance Guide for Long-Term Performance
To ensure the 20+ year design life of Richocean aluminum casement windows, proper installation and scheduled maintenance are critical. We provide full technical submittals for installation teams, including shop drawings and sealant specifications.
Installation Best Practices
1. Sub-frame Alignment: Ensure the rough opening is square and plumb within ±2mm. Any deviation can lead to improper gasket compression and air leaks.
2. Sealant Compatibility: Use high-grade neutral cure silicone sealants to prevent chemical reactions with the powder coating or EPDM gaskets.
3. Hardware Adjustment: After the building has settled, a secondary adjustment of the friction stays and locking points is recommended to maintain smooth operation.
Recommended Maintenance Schedule
- Coastal Environments: Every 3 months. Clean frames with fresh water to remove salt deposits. Lubricate hinges with silicone-based lubricant.
- Inland/Urban Environments: Every 6-12 months. Inspect drainage holes for debris and verify the integrity of the EPDM seals.
9. Client Testimonials: Why Global Builders Trust Us
> “As a developer in Florida, I need suppliers who understand our building codes. Richocean’s technical team provided all the necessary test reports and engineering drawings for our local permits. Their Casement Windows Factory is the most professional I’ve worked with in China.”
> — David M., Principal Architect, US Development Group
> “We’ve been sourcing Wholesale Aluminum Casement Windows from Richocean for three years. Their 5-layer packaging system is a game-changer; we’ve had zero breakage on over 40 containers shipped to Melbourne.”
> — Sarah L., Procurement Manager, AusBuild Solutions
Conclusion: Partner with a Reliable Manufacturer
Sourcing from a Top 10 Casement Windows Factory like Richocean means investing in durability, compliance, and engineering excellence. Whether you are looking for a Price List for your next residential project or a Supplier for a large-scale commercial development, our team is ready to provide the technical support you need.
For Bulk Window Procurement inquiries or to request a factory tour, contact Richocean today. We don’t just build windows; we build the future of architectural glazing.
[Internal SEO Metadata]
- Target Category: Casement Windows
- Images:

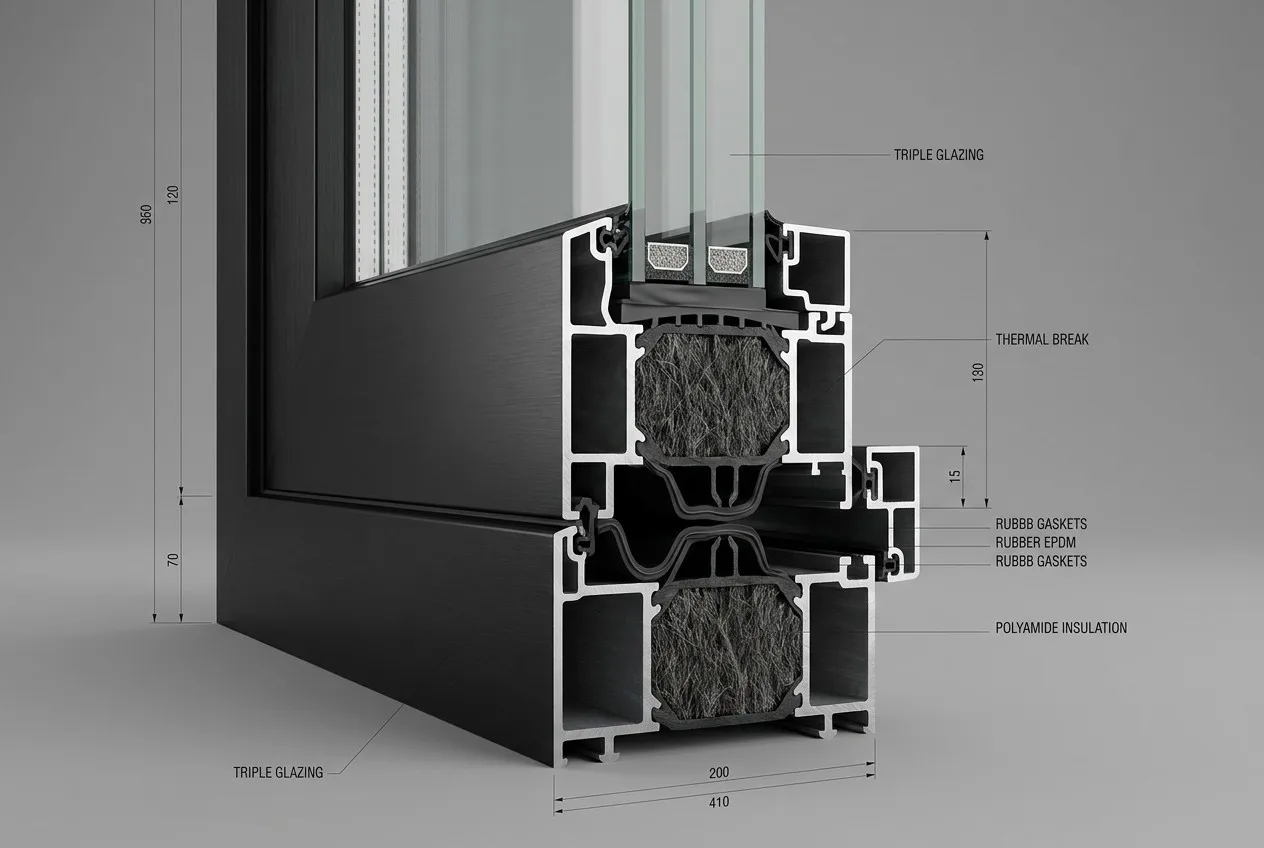

- 3D Technical Profile (Alt: 3D Render of High-Performance Aluminum Casement Window Profile with Thermal Break)
