Sourcing Wholesale Aluminum Folding Windows from China: A B2B Buyer’s Guide
In the modern hospitality sector, luxury residential designs, and open-plan kitchen renovations, creating seamless indoor-outdoor transitions is a prominent architectural trend. While standard sliding and double-hung windows look elegant, they always leave at least half of the structural opening closed.

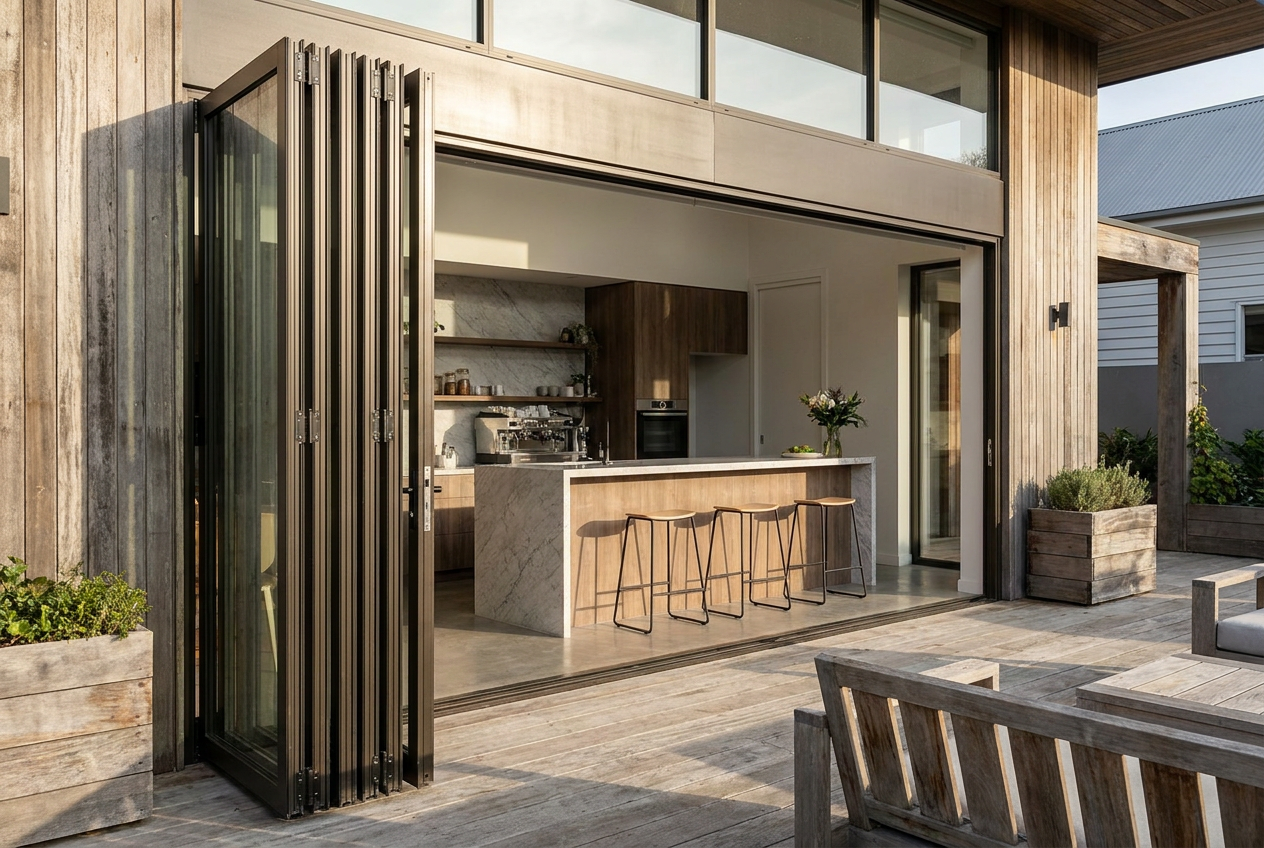

To open up 100% of a window opening, architects and builders specify aluminum folding windows (or bi-fold windows). These accordion-style windows fold and stack neatly to the side, turning a kitchen counter into an open-air bar in seconds.
Sourcing these systems from a specialized china folding windows supplier allows distributors, contractors, and developers to acquire custom bi-fold windows featuring slim frames, high-strength hardware, and compliant thermal breaks at competitive wholesale rates.
This B2B sourcing guide outlines the core configurations, hinge and tracking mechanics, weatherproofing, and import compliance checklists required for wholesale procurement.
1. Structural Profiles: Strength and Thermal Break Engineering
Bi-fold windows contain multiple panels linked together by hinges. Because the entire window load moves horizontally and hangs from the frame, they require robust structural profiles:
- High-Performance Alloys: Frames are extruded from 6063-T5 structural-grade aluminum alloy, providing high structural stability and tensile strength.
- Wall Thickness Standards: To handle heavy overhead safety glass, the frame profile must feature a minimum wall thickness of 2.0mm to 2.5mm.
- Continuous Thermal Breaks: Polyamide insulation barriers (PA66 GF25) must be enqueued into the middle of the frame profiles to stop cold/heat bridging and prevent frame condensation.
2. Multi-Fold Panel Configurations
Bi-fold windows offer highly flexible panel configurations to match different architectural openings:
- 3+0 Layout: Three panels fold and slide completely to one side.
- 3+1 Layout: Three panels fold to one side, while one single panel opens as an independent swing window on the opposite side for easy daily ventilation.
- 4+0 Layout: Four panels fold and stack to one side, suitable for wide bar counters.
Heavy-Duty Hinge and Roller Mechanics
To prevent bi-fold window sashes from sagging over time, specify premium mechanical hardware:
- Quad-Wheel Guide Rollers: Reinforced stainless steel guide rollers equipped with precision sealed bearings that glide quietly inside the track.
- 3D Adjustable Hinges: Heavy-duty hinges that allow vertical, horizontal, and depth fine-tuning, letting installers correct any micro-settling of the building.
3. Global Compliance and Storm Weatherproofing
Because folding windows feature multiple vertical joints between panels, weatherproofing and wind resistance require elite engineering:
| Technical Metric | Sourcing Target | Standard / Testing Code |
|---|---|---|
| Wind Pressure Resistance | Class 4 (up to 2500 Pa) | ASTM E330 / AS2047 |
| Water Tightness | Zero leakage up to 350 Pa | ASTM E331 / EN 12208 |
| Air Infiltration | Under 0.15 m³/h.m² | ASTM E283 / EN 12207 |
Richocean bi-fold windows utilize continuous double-layer EPDM compression gaskets between all folding panels. When the door is closed, the gaskets are highly compressed, creating an airtight, draft-free, and water-tight seal.
4. Bulk Sourcing Checklist for B2B Buyers
Step 1: Lintel Deflection Analysis
For top-hung folding windows, the structural header lintel above the opening carries the entire window load. Ensure your structural engineer verifies that lintel deflection under dead load does not exceed L/300 of the span to prevent the tracks from binding or jamming.
Step 2: Flush Track Drainage Integration
To achieve a completely seamless, flush look between indoor and outdoor kitchen counters:
- Specify a flush drainage track.
- Ensure the exterior counter has a built-in drainage slope to collect and drain away any rain run-off.
Step 3: Factory QC Pre-Assembly and Inspection
Always require your manufacturer to completely assemble and cycle-test the folding windows in the factory before packing. Verify the smooth folding operation, locking alignment, and gasket seals. The manufacturer should send you high-resolution photos and video confirmations of this pre-assembly stage.
FAQ
What is the maximum width and height for a bi-fold window panel?
For heavy-duty aluminum folding windows, the maximum standard panel width is 0.9 to 1.0 meters, and the maximum panel height is 1.8 to 2.2 meters.
Do aluminum folding windows have high thermal efficiency?
Yes. When manufactured with thermal break aluminum frames, double-glazed Low-E glass filled with Argon gas, and warm-edge spacer bars, bi-fold windows achieve outstanding thermal performance, with U-values easily dropping below 1.6 W/m²K.
Conclusion: Transform Spaces with Richocean Folding Windows
Aluminum folding windows represent a high-value architectural addition that transforms residential homes and commercial spaces into luxurious, open-concept environments. Sourcing wholesale folding windows directly from Richocean provides builders, developers, and distributors with elite mechanical engineering, premium adjustable hardware, and compliant weather-sealed profiles shipped safely to your project at factory direct prices.
Contact our B2B window engineering team today to request free CAD shop designs, layout configuration recommendations, and a custom wholesale factory quote.
