Importing Custom Aluminum Bay and Bow Windows from China: A B2B Architectural Sourcing Guide

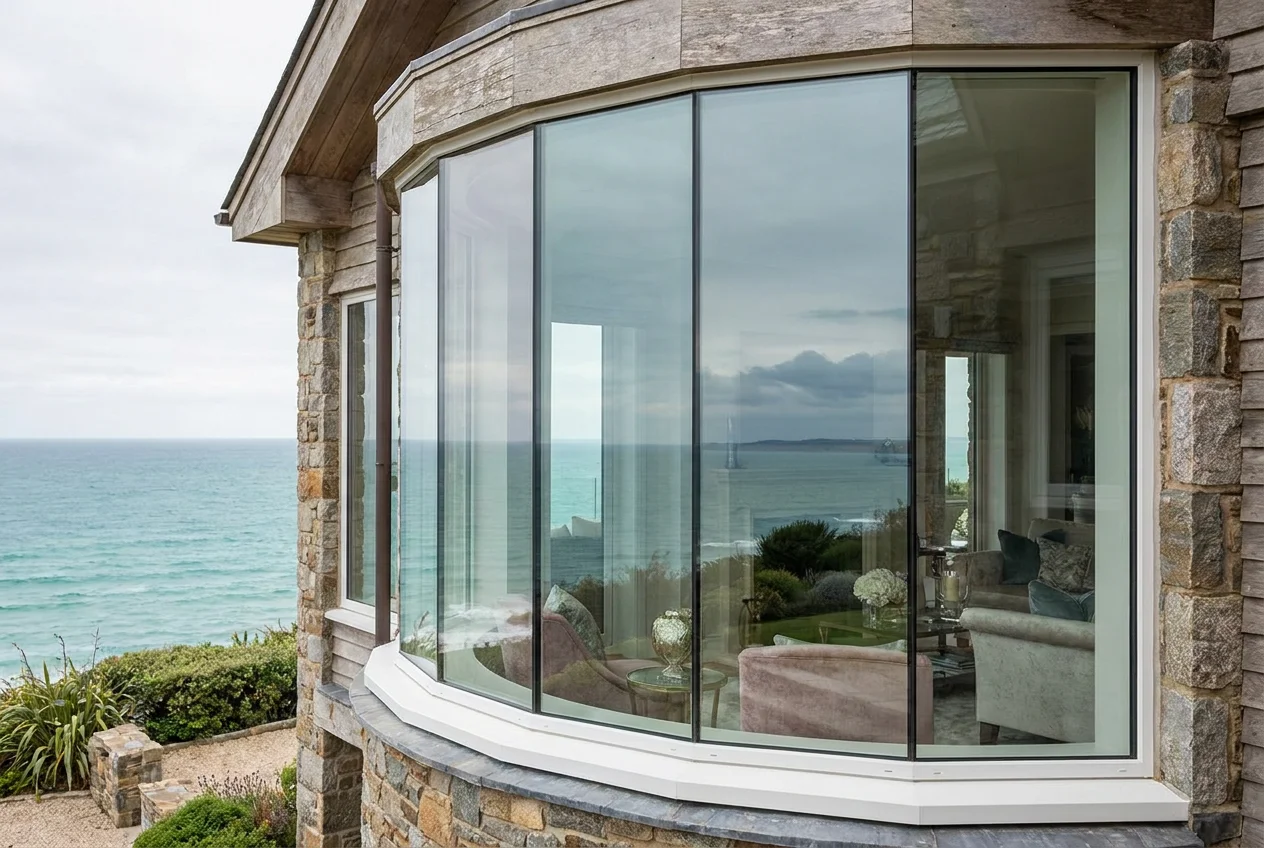

In high-end residential architecture and luxury custom home designs, maximizing panoramic viewpoints and injecting spaciousness into living spaces are central priorities. Bay and bow windows are highly favored, projecting outwards from the building wall to create elegant, light-filled alcoves and cozy interior window seats.
Sourcing these complex, multi-panel structural glazing systems from a specialized china folding windows supplier or custom window manufacturer allows developers, architects, and wholesalers to acquire bespoke designs with premium aluminum frames and certified glass while maintaining strict project budgets.
This B2B guide outlines the core structural mechanics, material properties, glass selection, and bulk import processes required to successfully source custom aluminum bay and bow windows from China.
1. Structural Engineering and Core Frame Specifications
Unlike standard flat windows, bay and bow windows project outwards, exposing their frames and connections to heavy wind loads, dead loads, and overhead weather conditions. They demand robust structural engineering:
- Premium Aluminum Alloys: Support frames and structural couplings are extruded from 6063-T5 or 6063-T6 structural-grade aluminum, providing superior bending and wind resistance.
- Profile Thickness Compliance: Structural vertical mullions (the connection columns between panels) must feature a wall thickness of 2.5mm to 3.5mm to safely support the roof and dead weight of the glazing system.
- Continuous Thermal Breaks: Polyamide barrier strips (PA66 GF25) must isolate the inner and outer frame structures to break the cold/heat bridge and prevent frame sweating in cold winter months.
2. Dynamic Wind-Load and Deflection Calculations
For successful installation and structural approval, developers must provide exact site wind-load requirements to the Chinese manufacturer:
1. Finite Element Method (FEM) Simulation: A reliable factory like Richocean will run full 3D Finite Element Analysis on the mitered frame corners to calculate maximum stress points.
2. Deflection Indexing: Vertical connection columns are engineered to ensure that under maximum wind load, deflection does not exceed L/175 of the span, preventing glass cracking and seal failure.
3. Global Compliance and Safety Glazing Standards
Because bay and bow windows are large-format glass systems, they must strictly comply with local building regulations:
| Target Market | Code Compliance | Core Focus Area | Certification Name |
|---|---|---|---|
| Australia & NZ | AS2047 / AS1288 | Water tightness, structural deflection, glass safety | AS2047 Certificate |
| North America | NFRC / AAMA / CSA | Solar Heat Gain (SHGC), U-value, wind load | NFRC Certified |
| European Union | EN 14351-1 | Safety loading, thermal resistance | CE Mark |
Richocean ensures that all exported custom bay and bow window profiles utilize double-glazed or triple-glazed Low-E tempered safety glass filled with Argon gas, complying fully with AS2047 and CE regulations.
4. Bulk Sourcing Checklist for Builders and Developers
Step 1: CAD Shop Drawings and Angle Verification
Provide your architectural plans. Since bow windows consist of multiple panels at gentle angles (typically 10 to 45 degrees), the manufacturer will generate detailed CAD shop drawings specifying the exact custom-angle coupling adaptors.
Step 2: High-Durability Finish Specifications
Specify premium surface treatments to protect frames from fading and UV damage:
- Fluorocarbon Paint (PVDF): Highly recommended for coastal projects due to its superior resistance to salt-air corrosion (20+ year lifespan).
- Architectural Powder Coating: Available in standard RAL colors or customized wood-grain textures.
Step 3: Plywood Packaging and Safe Logistics
To prevent scratching or frame damage during long-distance transit, ensure your manufacturer uses high-density foam, cardboard edge guards, and solid plywood crates.
FAQ
What is the difference between a bay window and a bow window?
A bay window typically consists of three panels enqueued at sharp angles (usually 30 or 45 degrees), projecting outwards in a polygonal shape. A bow window consists of four to six panels enqueued at gentle angles (typically 10 degrees) to create a smooth, curved aesthetic.
Conclusion: Partner with Richocean for Sourcing Success
Custom aluminum bay and bow windows from Richocean offer B2B buyers an elegant, panoramic, and cost-effective glazing solution. Partnering directly with our specialized factory guarantees elite structural engineering, certified safety compliance, and robust export logistics delivered directly to your project site.
Contact our engineering division today to submit your size specifications and receive free CAD shop designs and a custom wholesale factory quote.
