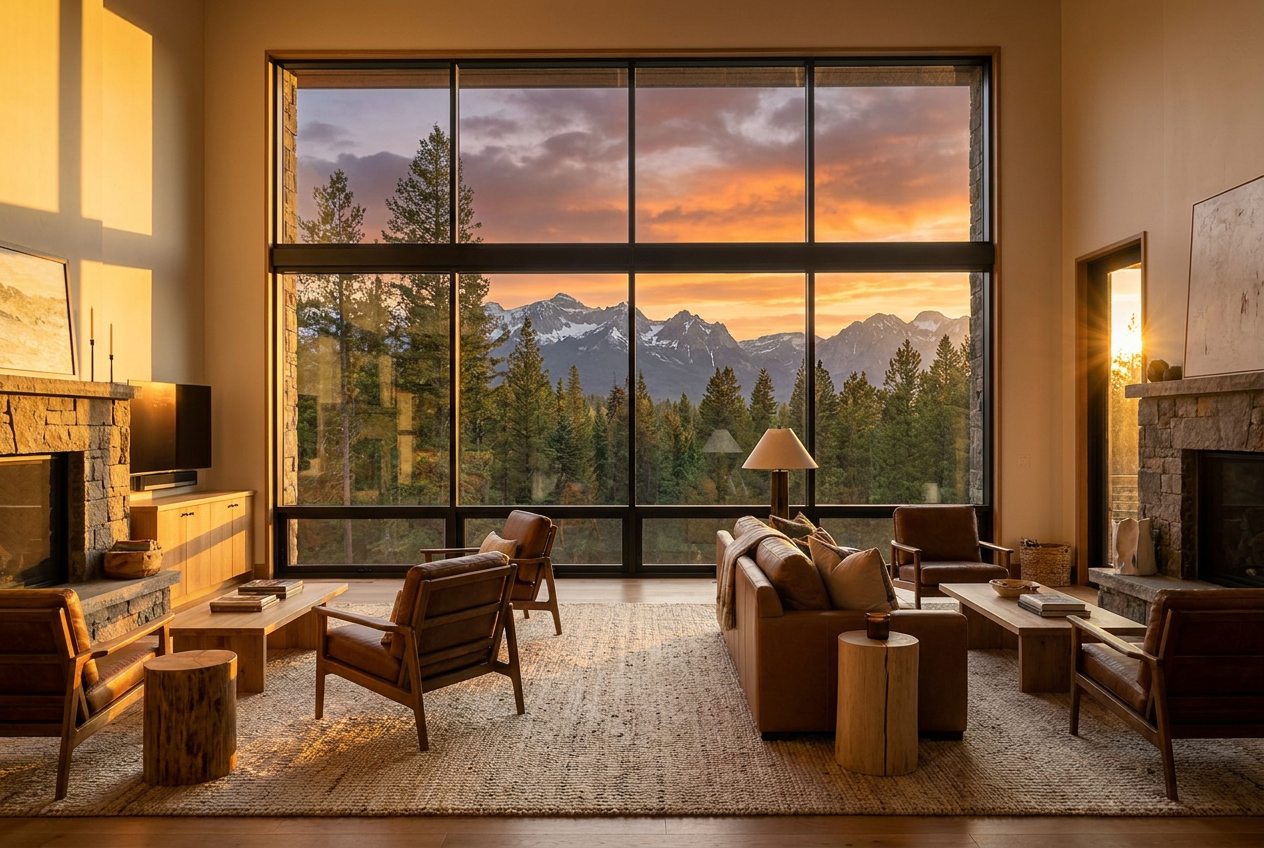

Custom Architectural Picture Windows from China: Sourcing Large-Span Fixed Glazing Systems
In modern luxury residential and high-end commercial projects, maximizing natural daylighting and creating seamless connections with the surrounding landscape are core design goals. Picture windows (or fixed windows) are the perfect choice, offering massive, uninterrupted views because they do not have any opening sashes or hardware.
Sourcing these systems from a specialized custom picture windows factory in china allows developers, builders, and material distributors to acquire massive large-span glazing systems with premium aluminum frames and certified glass while maintaining project budgets.
This B2B sourcing guide outlines the core structural engineering, material choices, thermal mechanics, and OEM sourcing checklists required to execute high-end picture window projects.
1. Structural Engineering: Designing for Massive Spans
Because picture windows are designed for large glass walls (often exceeding 5 meters in width or 3 meters in height), the frame and glass must handle extreme dead loads and wind pressures:
- Heavy-Duty Aluminum Profiles: Extruded from 6063-T6 structural-grade aluminum alloy, with main frame wall thicknesses of 2.5mm to 4.0mm depending on the span length.
- Galvanized Steel Inserts: For wide-span picture windows, the aluminum columns must feature internal chambers designed to house heavy-duty galvanized steel inserts to increase structural bending resistance.
- Bending Deflection Limits: Under maximum wind load, the frame deflection must not exceed L/175 of the span length to prevent glass cracking.
2. Advanced Glazing Configurations for Large Glass Walls
Large expanses of glass can cause significant solar heat gain or heat loss without proper engineering:
- Insulated Double/Triple Glazing: Standard configuration is 6mm Low-E Tempered + 12Argon + 6mm Tempered.
- Overhead and Balcony Safety: For large panes near the floor or overhead, specify laminated safety glass (e.g., 6mm Tempered + 1.14mm PVB/SGP + 6mm Tempered) to prevent injury if broken.
- Low-E Coatings: High-performance low-emissivity coatings block infrared and ultraviolet solar rays, preventing indoor overheating.
3. Compliance and Wind-Load Standards
To pass local structural inspections, the custom picture window design must be certified against verified structural codes:
| Export Target | Compliance Standard | Primary Focus Area | Certification |
|---|---|---|---|
| Australia / NZ | AS2047 / AS1288 | Water tightness, structural deflection, glass safety | AS2047 Certificate |
| North America | NFRC / AAMA | Energy efficiency, U-factor, solar heat gain | NFRC Certified |
| European Union | EN 14351-1 | Structural resistance, safety loading | CE Mark |
At Richocean, our picture window systems undergo rigorous air infiltration, water tightness, and wind pressure testing to guarantee compliance with Australian (AS2047) and European (CE) standards.
4. OEM Sourcing Checklist for Large-Span Glazing
Step 1: CAD Shop Drawings & FEA Analysis
Provide your architectural plans. The manufacturer will generate detailed CAD shop drawings, cross-sections, and run Finite Element Analysis (FEA) simulations to verify profile thickness, glass build, and anchorage points.
Step 2: High-Durability Surface Finish
Specify long-lasting surface coatings:
- Fluorocarbon Paint (PVDF): Highly recommended for coastal projects due to its superior resistance to salt-air corrosion and UV fading.
- Anodizing: Provides a premium, scratch-resistant metallic finish (such as matte black, dark bronze, or silver) highly suited for ultra-modern residential facades.
Step 3: Bulk Logistics and Plywood Packaging
Large, heavy glass panels require maximum transport security. Ensure your factory uses a 5-layer export packaging line with high-density foam, heavy-duty cardboard edge guards, and solid, non-fumigation plywood crates.
FAQ
Can picture windows be combined with opening windows?
Yes! Richocean picture windows can be designed in combination with casement, sliding, or awning windows within the same outer frame, providing both ventilation and massive panoramic views.
How do you prevent water leaks in large fixed windows?
Water leaks are prevented using deep glazing pockets, high-grade EPDM compression gaskets, built-in internal aluminum drainage channels, and professional structural sealants.
Conclusion: Partner with Richocean for Sourcing Success
Custom aluminum picture windows from Richocean offer B2B buyers an elegant, panoramic, and cost-effective glazing solution. Partnering directly with our specialized factory guarantees elite structural engineering, certified safety compliance, and robust export logistics delivered directly to your project site.
Contact our commercial project team today to request custom CAD shop drawings and receive a free bulk factory direct quote.
