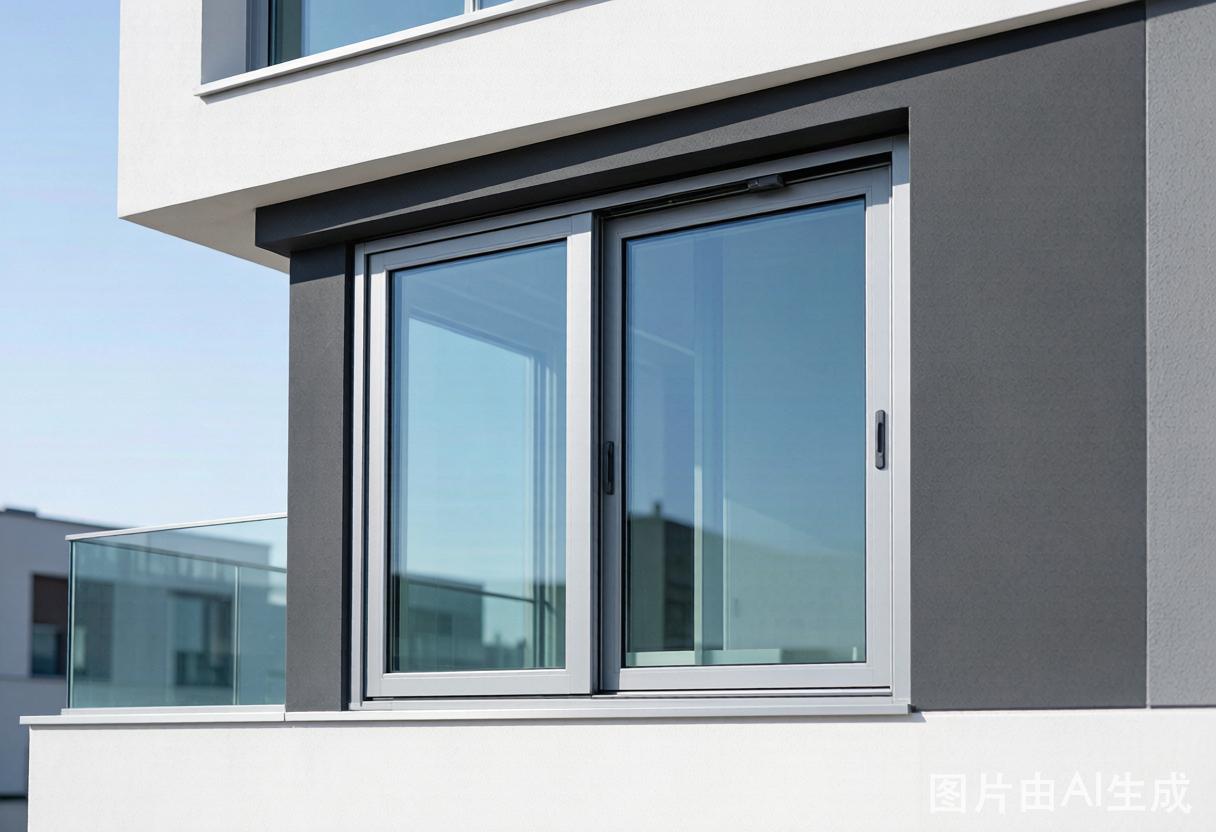

Aluminum Sliding Window Supplier in China: Frame Specs, Pricing, and Performance Data

Sliding Window Frame Specifications and Aluminum Alloy Grades

Aluminum Alloy 6063-T5 and 6063A-T5 Profile Data

Sliding window profiles from China manufacturers primarily use 6063-T5 and 6063A-T5 aluminum alloy grades. 6063-T5 offers a minimum tensile strength of 160 MPa and yield strength of 110 MPa, suitable for standard residential sliding windows. 6063A-T5 provides tensile strength of 200 MPa and yield strength of 150 MPa, used for larger sash panels exceeding 1500 mm width.

Profile wall thickness standards:

China GB/T 5237 standard mandates minimum 1.4 mm wall thickness for residential window profiles. Export markets requiring AAMA 2604 compliance specify 1.8 mm as the baseline for sliding window outer frames.

Surface Treatment Parameters and Color Options

Surface treatment for aluminum sliding window frames follows three primary methods:

Anodizing: Film thickness 10-25 micrometers (AA10 to AA25). Standard anodizing at AA15 (15 micrometers) provides 300-hour salt spray resistance. AA25 reaches 1000-hour salt spray endurance per ISO 9227.

Electrostatic powder coating: Film thickness 40-120 micrometers. Polyester powder at 60-80 micrometers delivers 1000-hour Florida exposure test compliance (AAMA 2604). Super durable polyester at 80-120 micrometers meets AAMA 2605 (10-year Florida warranty). Available RAL colors: 9003 (white), 7016 (anthracite grey), 8019 (black brown), 3005 (red), custom metallic silver.

PVDF fluorocarbon coating: Film thickness 30-40 micrometers (2-coat) or 40-50 micrometers (3-coat). 3-coat PVDF meets AAMA 2605 with 4000-hour Florida exposure durability. Color retention exceeds 95% after 10 years.

Aluminum Sliding Window Performance Data: U-Values, Air Leakage, and Wind Load

Thermal Performance – U-Value and Insulation Strip Specifications

Thermal performance of aluminum sliding windows depends on the polyamide (PA66-GF25) thermal break strip. Strip width directly correlates with U-value reduction:

PA66-GF25 thermal break strips contain 25% glass fiber reinforcement, with heat distortion temperature at 240 degrees C and tensile strength at 120 MPa. Strip width 24 mm balances cost and performance for most residential applications. For passive house projects (U-value less than 1.0 W/m2.K), 34.3 mm strips with triple glazing are required.

Wind Load Resistance, Water Tightness, and Air Permeability Ratings

China GB/T 7106 classifies aluminum sliding window performance into grades. Export specifications align with EN 12210, EN 12211, and EN 12207:

Miami-Dade NOA (Notice of Acceptance) certification requires wind load of 4750 Pa minimum for HVHZ (High Velocity Hurricane Zone) compliance. Miami-Dade approved sliding windows use 2.0 mm wall thickness profiles with 34.3 mm thermal break and laminated glass 5+0.76+5.

Sliding Windows for Houses: Size Configurations and Price Breakdowns

Standard Size Configurations and Glass Options

Sliding windows for houses come in standard and custom configurations. Common sizes for residential projects:

Glass options for residential sliding windows include: single glazing (5 mm tempered), double glazing (5+9A+5, 5+12A+5, 5+16A+5), laminated (5+0.76+5, 6+0.76+6), and low-E coated variants. Argon gas filling between glass panes reduces U-value by 0.3-0.5 W/m2.K.

Price Breakdown – Unit and Project Pricing (USD)

Pricing for aluminum sliding windows from China suppliers, based on FOB Shenzhen/Guangzhou:

Project pricing for bulk orders (500 m2 or more): 12-18% discount on FOB unit prices. Container-load orders (2000 m2 or more): 20-25% discount. Payment terms: 30% T/T deposit + 70% before shipment, or L/C at sight for orders exceeding $50,000.

Vertical Sliding Window Systems: Sash Balance and Track Mechanisms

Single-Hung and Double-Hung Mechanism Design

Vertical sliding window systems (single-hung and double-hung) use different balance mechanisms from horizontal sliders. The primary options are:

Constant force spiral balance: Steel spiral rod with torsion spring, rated for 10,000+ cycle lifespan. Balance force range: 5-50 lbs per sash. Cost per set: $4-8 USD. Used for sash weight up to 25 kg.

Block-and-tackle balance: Pulley system with stainless steel cable and spring block. Rated for 15,000+ cycles. Balance force range: 10-80 lbs per sash. Cost per set: $8-15 USD. Used for sash weight 25-60 kg.

Hidden tilt balance: Integrated into the sash stile, allows tilt-in function for cleaning. Rated for 8,000+ cycles. Cost per set: $12-20 USD. AAMA 907.1 certified options available.

Track and Roller Specifications for Horizontal Sliders

Horizontal sliding window track systems use nylon or stainless steel rollers:

Stainless steel rollers are recommended for coastal installations where salt exposure degrades nylon within 5-7 years. Roller spacing: minimum 2 rollers per sash for widths up to 1200 mm, 3 rollers for widths 1200-1800 mm, 4 rollers for widths 1800 mm and above.

Procurement Data: MOQ, Lead Time, Payment, and Packaging for China Suppliers

MOQ, Lead Time, and Payment Terms

Procurement parameters from China aluminum sliding window suppliers:

Custom color anodizing or powder coating adds 5-7 working days. Custom profile die development (non-standard cross-section) requires 15-20 working days and $3,000-5,000 die cost, refundable at 5,000 kg profile order.

Packaging, Shipping, and Installation Support

Standard packaging for aluminum sliding window export:

• Single window: PE film wrap + foam corner protectors + cardboard box. Box dimensions: (W+100)x(H+100)x(D+100) mm.
• Bulk packaging: Steel rack frame with PE film and EPE foam interleaving. 40-60 windows per rack unit.
• Container loading: 20 ft GP: 80-120 m2 (approx. 40-60 windows). 40 ft HQ: 200-300 m2 (approx. 100-150 windows).

Installation support materials included with each order: stainless steel screws set, silicone sealant (2 tubes per 10 m2), installation guide PDF in English, and hardware adjustment tools. On-site installation supervision available for orders of 1000 m2 or more at $150/day per technician plus travel costs.

Certifications and Quality Control for Aluminum Sliding Window Export

International Certification Requirements

China aluminum sliding window suppliers targeting international markets must hold the following certifications:

ROGENILAN sliding windows carry CE, NFRC, ISO 9001, and Miami-Dade NOA certifications. AAMA 2605 coating warranty covers 10-year color and gloss retention for PVDF finishes.

Quality Control Process and Testing Data

Factory QC for sliding window production follows a 7-step protocol:

1. Profile inspection: Wall thickness measurement with digital micrometer (+/-0.01 mm). 100% check, reject below 1.38 mm for 1.4 mm spec.
2. Surface treatment test: Film thickness measured with Elcometer 456 (+/-1 micrometer). Adhesion cross-cut test per ISO 2409, Grade 0 required.
3. Glass inspection: Tempered glass fragmentation test per EN 12600 – minimum 40 fragments within 50×50 mm area for 5 mm glass.
4. Hardware function test: 5,000 cycle open/close operation test per EN 13115. Lock engagement of 8 mm minimum.
5. Water spray test: 500 Pa dynamic water tightness per GB/T 7106, 15-minute duration, zero leakage allowed.
6. Air leakage test: Differential pressure 150 Pa, leakage up to 1.5 m3/m.h for Grade 7.
7. Final packaging check: Label verification, seal integrity, foam positioning confirmed before container loading.

For detailed product specifications, visit the Rich Ocean sliding windows collection. For aluminum frame options across all window types, see the aluminum windows catalog. For project consultations and custom configurations, browse the full windows product range.
