Sourcing Modern Aluminum Shutter Windows from China: A B2B Architectural Guide

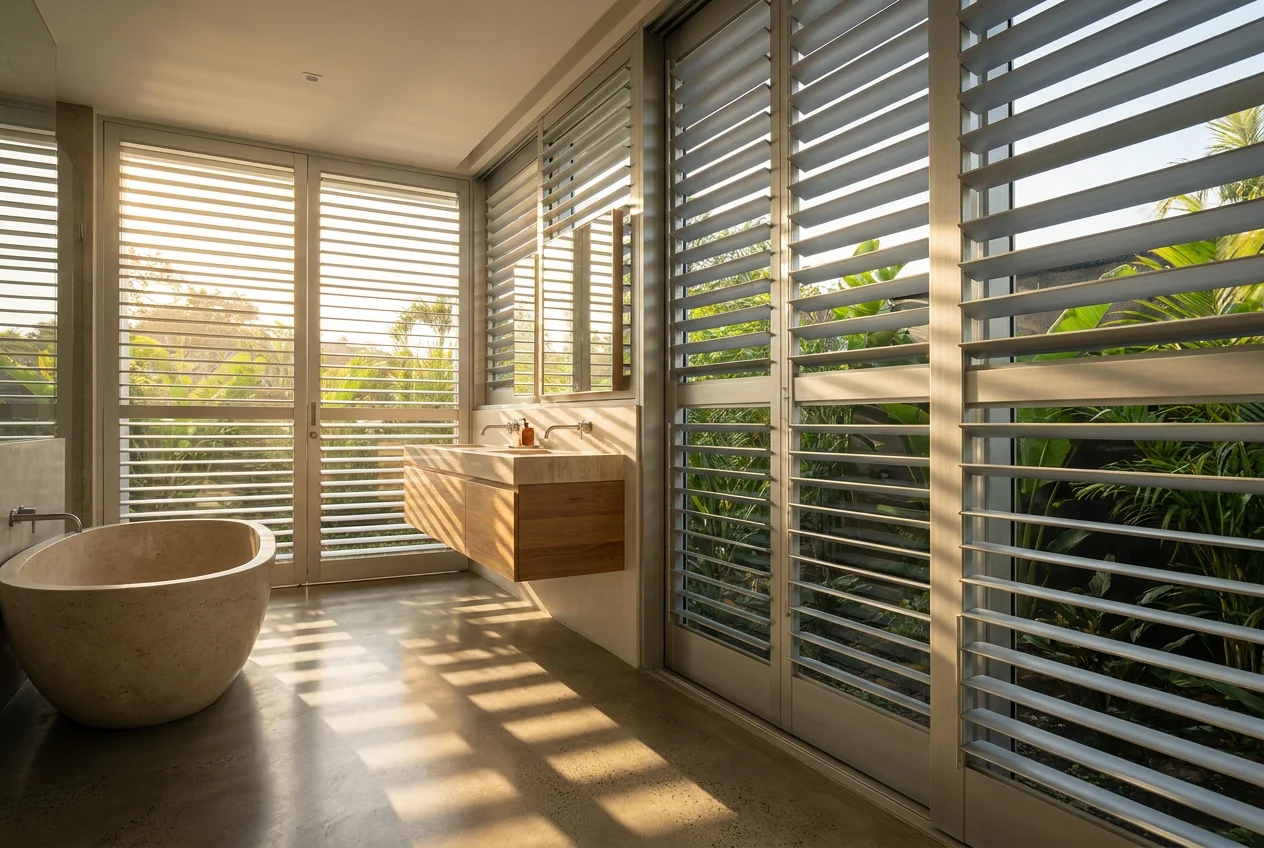

For modern commercial venues, tropical resorts, and eco-friendly residential developments, designing ventilation systems that combine sun-shading, ventilation, and security is a major design priority. Aluminum shutter windows (or louver windows) represent the ideal architectural choice, featuring adjustable horizontal slats that allow users to control light and airflow.
Sourcing these high-performance systems from a specialized china aluminum awning windows supplier or custom louver manufacturer allows builders, contractors, and glazing wholesalers to obtain customized designs with premium finishes and advanced hardware at factory direct prices.
This B2B sourcing guide outlines the core structural specifications, louver mechanics, weatherproofing, and import compliance checklists required for professional bulk procurement.
1. Structural Profiles: Strength and Aluminum Alloy Specs
Shutter windows are enqueued on exterior facades and exposed to direct wind loads, requiring robust aluminum frame structures:
- High-Strength Alloys: Frames and louvers are extruded from 6063-T5 or 6063-T6 structural aluminum, providing high structural stability and wind resistance.
- Wall Thickness Compliance: To comply with commercial building standards, specify a wall thickness of 1.4mm to 2.0mm for outer frames and 1.2mm to 1.8mm for louver slats.
- Anodizing and Powder Coating: Available in standard RAL colors or anodized silver, bronze, or black, ensuring long-term resistance to coastal corrosion and fading.
2. Louver Mechanics and Hardware Engineering
The functionality and durability of an aluminum shutter window depend entirely on its adjustable slat mechanics:
- Manual Hand Lever Controls: Built-in mechanical lever operators that open and close the louvers smoothly, allowing users to adjust the slats from 0 to 90 degrees.
- Motorized Intelligent Openers: For high or hard-to-reach locations, electric 24V linear actuators can be integrated, allowing automated louver control via wall switches or smart home apps.
- Built-in Insect Screens: High-grade fiberglass or stainless steel mesh screens can be seamlessly enqueued on the inside of the shutter window to prevent insects while allowing airflow.
3. Global Compliance and Storm Weatherproofing
Because shutter windows contain multiple adjustable horizontal slats, weatherproofing and water tightness require elite engineering:
| Technical Parameter | Sourcing Target | Standard / Testing Code |
|---|---|---|
| Wind Pressure Resistance | Class 3 – Class 4 (up to 2000 Pa) | ASTM E330 / AS2047 |
| Water Tightness | Zero leakage up to 250 Pa | ASTM E331 / EN 12208 |
| Air Infiltration | Under 0.2 m³/h.m² | ASTM E283 / EN 12207 |
Richocean louver window systems utilize double-layer EPDM compression gaskets on the overlapping edges of each aluminum slat. When fully closed, the slats compress together, creating an airtight, draft-free, and water-tight seal.
4. Bulk Sourcing Checklist for Louver Windows
Step 1: CAD Layout & Sizing Verification
Provide detailed dimensions. The factory will design custom shop drawings specifying single-light or multi-light combinations to match your architectural requirements.
Step 2: High-Durability Surface Finish
Specify long-lasting surface coatings:
- Fluorocarbon Paint (PVDF): Highly recommended for coastal projects due to its superior resistance to salt-air corrosion.
- Architectural Powder Coating: Available in standard RAL colors.
Step 3: Bulk Logistics and Plywood Packaging
To protect frames and louvers during long-distance transit, ensure your manufacturer utilizes high-density foam, cardboard edge guards, and solid, non-fumigation plywood crates.
FAQ
What are the main benefits of aluminum shutter windows?
Aluminum shutter windows provide excellent natural ventilation, effective sun shading, and high privacy. They are highly durable, require minimal maintenance compared to wood louvers, and are naturally rust-proof.
Conclusion: Partner with Richocean for Sourcing Success
Modern aluminum shutter windows from Richocean offer B2B buyers an elegant, ventilation-friendly, and cost-effective glazing solution. Partnering directly with our specialized factory guarantees elite engineering, certified safety compliance, and robust export logistics delivered directly to your project site.
Contact our commercial louver engineering team today to request custom CAD shop drawings and receive a free bulk factory direct quote.
