Sourcing European-Style Tilt and Turn Windows from China: High-Performance Engineering for Modern Developments
For premium residential developments, high-rise apartments, and eco-friendly commercial buildings, choosing windows that combine elite security with flexible ventilation is a major design priority. European-style tilt and turn windows represent the ultimate architectural choice, featuring a unique 2-in-1 mechanical function:

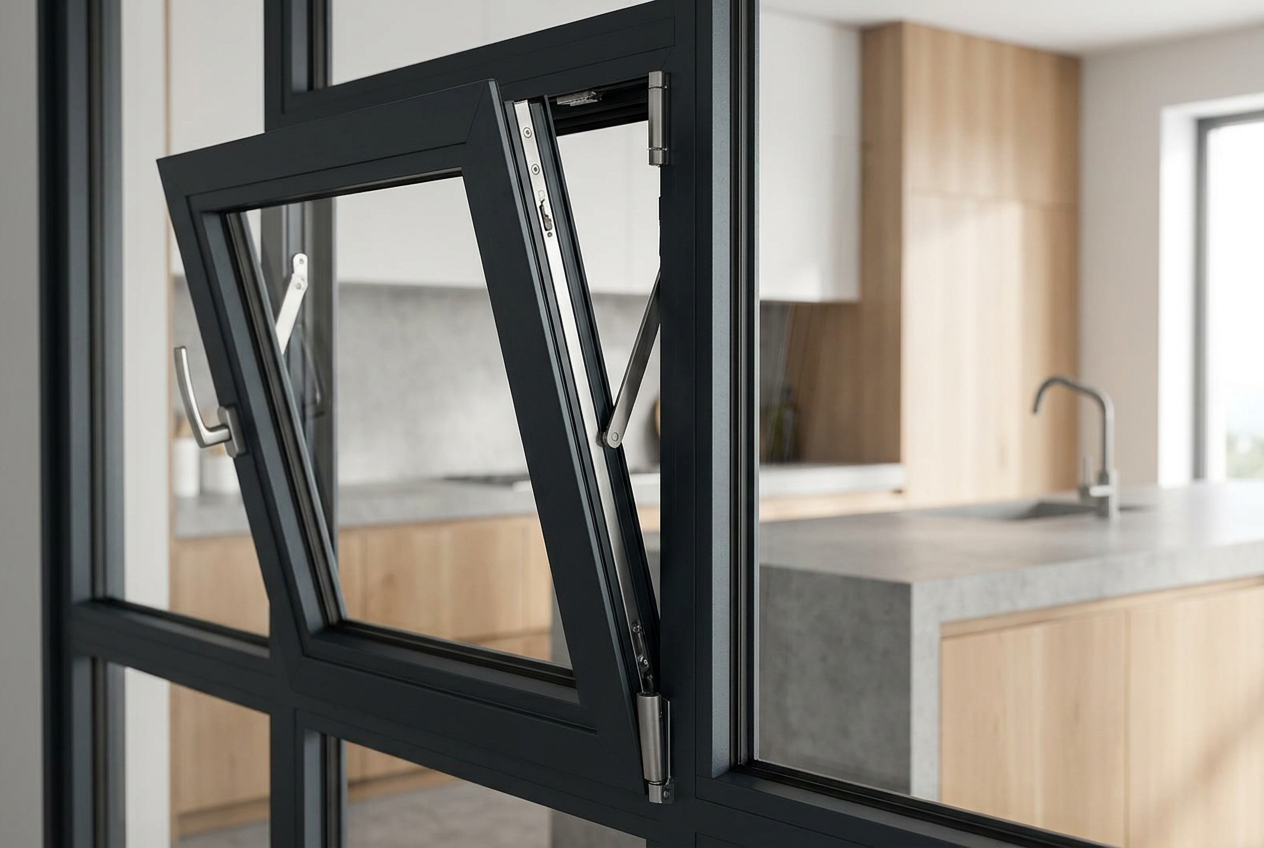

1. Tilt Mode: Tilts inwards from the top for secure, draft-free ventilation.
2. Turn Mode: Swings inwards like a standard casement door for easy cleaning and maximum airflow.
Sourcing these high-performance systems from a specialized china tilt and turn windows manufacturer allows developers, builders, and material distributors to acquire state-of-the-art custom designs with premium finishes and advanced hardware at factory direct prices.
This B2B sourcing guide outlines the core structural specifications, mechanical hardware, weatherproofing, and import compliance checklists required for professional bulk procurement.
1. Structural Profiles: Strength and Thermal Break Engineering
Tilt and turn windows require robust frame structures to handle the complex weight and moving paths of the sash:
- High-Strength Alloys: Frames are extruded from 6063-T5 or 6063-T6 structural aluminum, providing high structural stability.
- Wall Thickness Compliance: To comply with commercial building standards, specify a wall thickness of 1.4mm to 2.0mm.
- Polyamide Thermal Barriers: A continuous multi-cavity polyamide bar (such as PA66 GF25) isolates the frame, lowering U-values and preventing frame condensation.
2. Mechanical Hardware: The Heart of the System
The functionality and longevity of a tilt and turn window depend entirely on its complex gear mechanics. B2B buyers must specify premium hardware:
- German Multi-Point Locksets: Specify original German Roto Frank, Sobinco, or Siegenia hardware. These systems feature heavy-duty gearboxes, anti-pry locking pins, and run smoothly under over 50,000 cycles.
- Heavy-Duty Corner Hinges: High-grade hinges designed to support heavy triple-glazed sashes weighing up to 130 kilograms and prevent sash sagging over time.
- Safety Lockout Handles: Handles with built-in key locks or push-buttons to prevent children from opening the sash into Turn mode accidentally, maintaining strict safety.
3. Global Compliance and Weatherproofing Standards
Tilt and turn windows must hold verified compliance ratings to pass local inspections in developed export markets:
| Target Market | Code Compliance | Focus Area | Certification |
|---|---|---|---|
| Australia & NZ | AS2047 / AS1288 | Water tightness, structural deflection | AS2047 Certificate |
| North America | NFRC / AAMA | Energy efficiency, U-factor, solar heat gain | NFRC Certified |
| European Union | EN 14351-1 | Structural resistance, safety loading | CE Mark |
Richocean tilt and turn window systems are thoroughly tested and certified in accordance with AS2047 and CE standards, utilizing double-layer EPDM compression gaskets to ensure complete water tightness under severe storms.
4. Bulk Sourcing and Customization Checklist
Step 1: CAD Layout & Sizing Verification
Provide detailed dimensions. The factory will design custom shop drawings specifying single-light or multi-light combinations to match your architectural requirements.
Step 2: High-Durability Surface Finish
Specify long-lasting surface coatings:
- Fluorocarbon Powder Coating (PVDF): Highly recommended for coastal projects due to its superior resistance to salt-air corrosion and UV fading.
- Anodizing: Provides a premium, scratch-resistant metallic finish (such as matte black, dark bronze, or silver) highly suited for ultra-modern residential facades.
Step 3: Bulk Logistics and Plywood Packaging
Sashes containing glass require maximum transport security. Ensure your factory uses a 5-layer export packaging line with high-density foam, heavy-duty cardboard edge guards, and solid plywood crates.
FAQ
Why are tilt and turn windows so popular in Europe?
Because they open inwards, they are extremely easy to clean from the inside, making them perfect for high-rise buildings. They also offer excellent security, airtight sealing, and safe night-time ventilation.
Can flyscreens be enqueued on tilt and turn windows?
Yes. Richocean tilt and turn windows support exterior sliding screens or removable magnetic screens enqueued on the outside, which do not interfere with the inwards-opening sash.
Conclusion: Partner with Richocean for Sourcing Success
European-style tilt and turn windows from Richocean offer B2B buyers an elegant, highly secure, and cost-effective glazing solution. Sourcing directly from our specialized factory guarantees elite engineering, certified safety compliance, and robust export logistics delivered directly to your project site.
Contact our commercial window engineering team today to request custom CAD shop drawings and receive a free bulk factory direct quote.
